Goldfinger tape, also known as polyimide tape, is a polyimide film used as a substrate to coat high-performance silicone pressure-sensitive adhesives on one side. High-precision coating reaches ± 2.5um, no scratches, drawing and other phenomena, good shear, easy punching die-cutting process, with excellent high temperature resistance and solvent resistance!
Tape is widely used in various industries

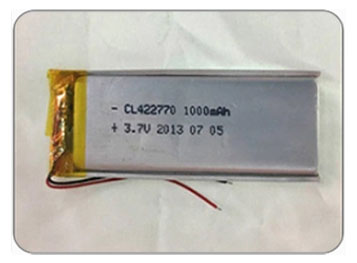

① Suitable for wave soldering shield of electronic circuit board, protection of gold finger and electrical insulation, motor insulation, and positive and negative pole of lithium battery.

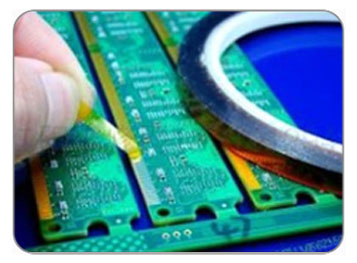

② Ideal for protecting sensitive printed circuit board components such as gold leads and gold fingers during the process of wave soldering.
③ Also extensive use as electrical insulation for transformer, motor, coil, capacitor and frequency conversion power supply in electronic industry.
33m per roll (36 yards per roll)
- Automotive sensor and manifolds
- Insulating circuit boards
- Fiber Optics Cable
- High temperature powder coating
- Semiconductor manufacturing
- Wave soldering during circuit board assembly
- 3D Printing
Substrate Material: Polyimide Polymers Film
Glue Type: Silicone
Substrate Material Thickness: 0.025mm
Thickness With Adhesive: 0.05mm
Color: Transparent Brown
Temperature Range: up to 280℃(536℉)
Width: 3mm, 6mm, 8mm, 12mm, 15mm
Length: 33m per roll (36 yards per roll)
