80x100cm Auto-open Manual Large Format Sublimation Heat Press W/Slide Base

  • Model NO.:


  • Description:
  • The magnetic auto-open HP680 is a multipurpose large format manual heat transfer press intended for the imprinting of a vast range of different materials. The machine combines an oversized platen with a low production oriented framework with a single loading table configuration. It is available in two different heater block sizes: 60 x 80cm and 80 x 100cm.

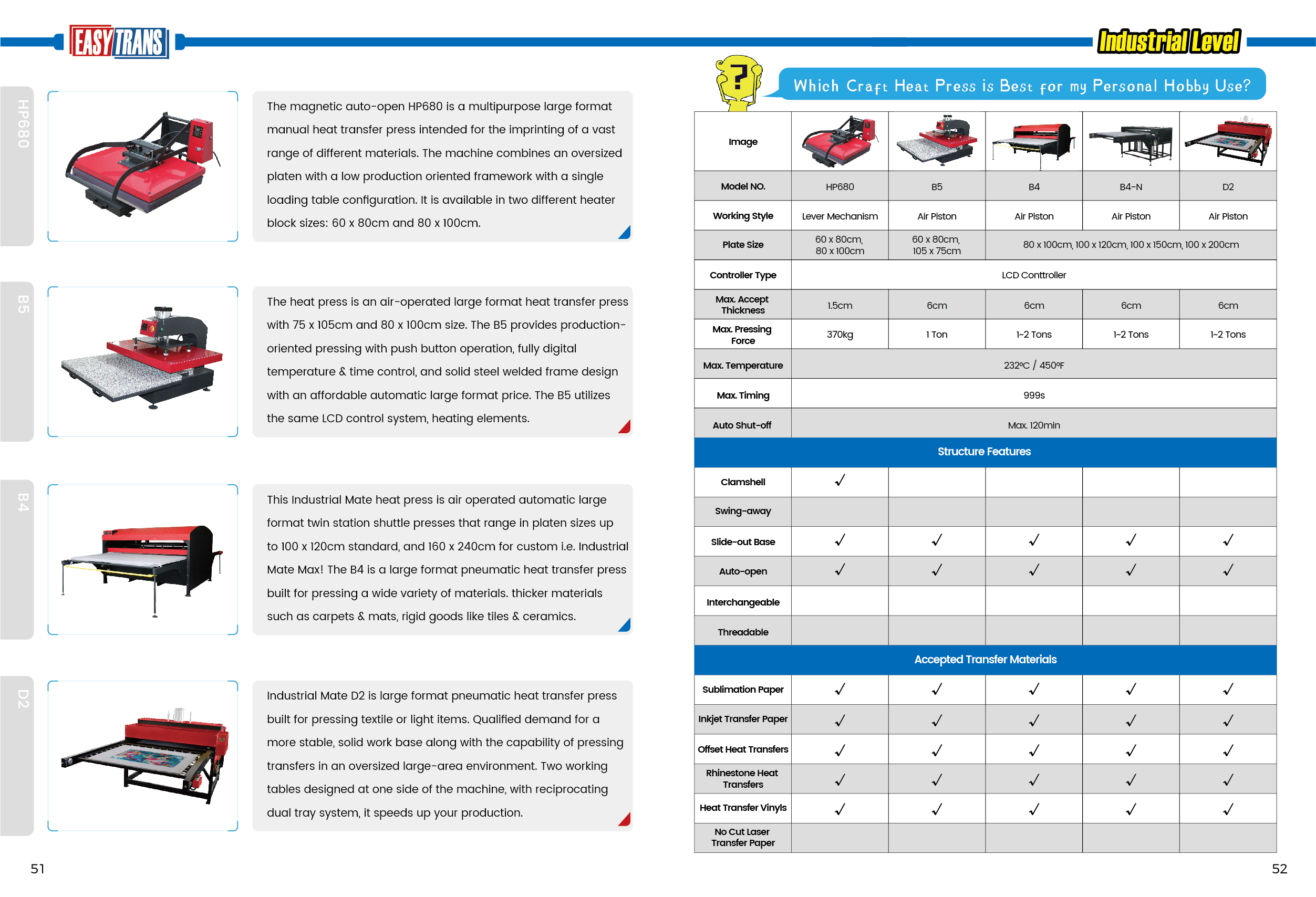

    P.S. Please click Download as PDF to save brochure and read more.

  • Style: Manual Heat Press
  • Features: Clamshell/Slide-out Base/Auto-open
  • Platen Size: 60 x 80cm, 80 x 100cm
  • Dimension: 154x113x153cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Description

    Product Tags

    large format heat press


    The gas shock counter springs provide a weightless and effortless operation of the press. The state-of-the art control system accurately regulates all aspects of the electrical functions of the press, freeing the operator for the main goal of material imprinting.

    Additional features

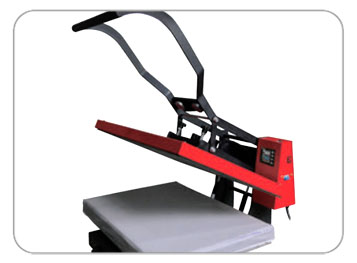

    auto open heat press

    Semi Auto-open Gently

    This heat press is over-center-pressure adjustment model, also it carries a magnetic auto-release function, means the heat press will be releasing the heat platen automatically when timing is finished which save labor and works more efficient.

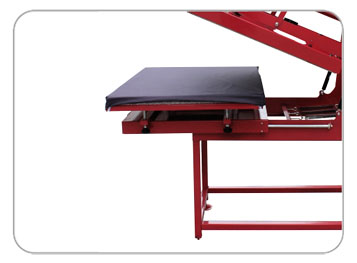

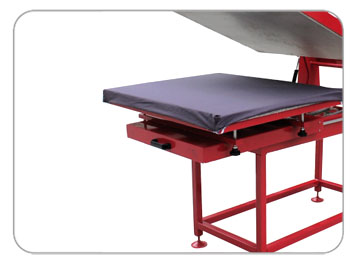

    pull out drawer heat press

    Pull-out Drawer, Caddie Stand

    This EasyTrans Industrial Mate is entry-level heat press, which is installed with a smooth pull-out drawer enables you have sufficient heat-free zone and load your garment easily. Besides, it’s available in either as a tabletop or with caddie stand model.

    heat press

    Advanced LCD Controller

    This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

    large format heat press

    Even Pessure Large Format

    This XINHONG is large format heat press with even pressure, the available sizes are 60 x 80cm and 80 x 100cm. It's applicable for Textiles, Chromaluxe, Sublimation Ceramic Tiles, MDF Boards, etc.

    large format heat press hp680 5

    CE/UL Certidied Spare Parts

    spare parts used on XINHONG heat presses are either CE or UL certified, which ensure heat press remain stable working condition and lower fail rate.

    heat press

    Heating Platen

    Gravity die casting technology made thicker heating platen, helps to keep heating element stay stable when heat makes it expand and cold makes it contract,also called even pressure and heat distribution guaranteed.


    Heat Press Style: Manual
    Motion Available: Auto-open/ Slide-out Drawer
    Heat Platen Size: 60 x 80cm, 80 x 100cm
    Voltage: 220V/ 380V
    Power: 4000-8000W

    Controller: LCD Controller Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: 102 x 83 x 57cm (60 x 80cm)
    Machine Weight: 96kg
    Shipping Dimensions: 115 x 95 x 70cm (60 x 80cm)
    Shipping Weight: 138kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
