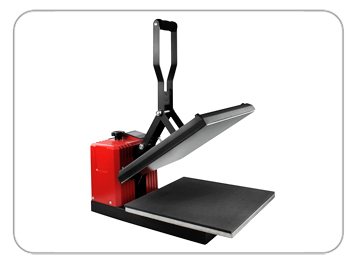

Clamshell Dye sublimation Heat Press Printing Machine

  • Model NO.:


  • Description:
  • It has beauty, brains, and brawn. This is the only clamshell in its class with a plug-in port for an optional mug press attachment. It also features a clear, easy-to-follow owner’s manual (a rarity in the industry) as well as an attached in-pocket reference guide for using common heat transfer materials.

    P.S. Please click Download as PDF to save brochure and read more.

  • Style: Clamshell Dye sublimation machine
  • Features: Clamshell/Interchangeable
  • Platen Size: 38 x 38/40 x 50/40 x 60cm
  • Dimension: 73x55x48cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Contact: WhatsApp/Wechat: 0086 - 150 6088 0319
  • Description


    Product Tags

    clamshell heat press


    HP3804N is a entry-level heat press for any sign starters which is cost saving and easy to use, clamshell and lever mechanism design make sure even pressure for heat transfer paper and sublimation paper and HTV projects.

    Additional features

    clamshell heat press

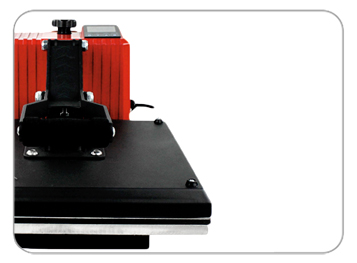

    Clamshell Design

    Clamshell design, it's simple but reliable for sign starters. User pays a small amount money and is able to make considerable business. Also this heat press is space saving and easily to use.

    clamshell heat press

    Mold Shaped Heating Palten Cover

    XINHONG heat presses heating platen covers incl 38x38cm, 40x50cm, 40x60cm are producef by mold, the corners look better compare with angle corners.

    heat press machine

    LCD Touch Controller

    Colorful LCD screen is self-design, through 3 years development, now is more powerful and contain function:accurate temperature display & control, auto time counting, per-alarm and temperature collation.

    heat press

    Premium Quality Heat Plate

    Die casting heating element made by reasonable layout heating tubes and 6061 qualified aluminum, Say. 8 pieces heat tubes for 38 x 38cm heat plate. Make sure even heat and pressure distribution, with the premium quality of the lower aluminum plate, all together guaranteed the good transfer job.

    clamshell heat press

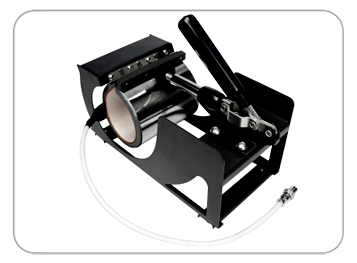

    2IN1 Mug & Heat Press

    Regardless of t-shirt heat press application, this XINHONG heat press has a mug press connector which enables to user could add additional mug heating elements (2.5oz, 10oz, 11oz, 12oz, 15oz, 17oz) depends on their needs.

    heat press

    CE/UL Certidied Spare Parts

    Spare parts used on XINHONG heat presses are either CE or UL certified, which ensure heat press remain stable working condition and lower fail rate.



    Heat Press Style: Manual
    Motion Available: Clamshell
    Heat Platen Size: 38 x 38cm, 40 x 50cm, 40 x 60cm
    Voltage: 110V or 220V
    Power: 1400-2200W

    Controller: LCD Controller Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: /
    Machine Weight: 23kg
    Shipping Dimensions: 69.5 x 36 x 46cm (38 x 38cm)
    Shipping Weight: 25kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
