40x50cm Prime Dual Station Shuttle Manual Heat Transfer Printing Machine

  • Model NO.:

    HP3805-2N

  • Description:
  • The twin station does twice the work with half the space as a regular swing-away press. One operator can press a job and set another in place. This helps you minimize downtime and keep up with demand, all with one heat press. Besides, LCD screen controller, and live digital time, accurate temperature read-out and Max. 120min set automatic standby. 5pcs optional quick-change lower platens and no tools required.

    P.S. Please click Download as PDF to save brochure and read more.


  • Style: Double station heat press
  • Features: Swing-away/Interchangeable/Threadable
  • Platen Size: 40 x 50cm
  • Dimension: 110x82x70cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Description

    Video

    Product Tags

    double station heat press 3805-2n

    The EasyTrans Ultimate Series is a solution of any professional transfers. It’s line of higher-end heat press and culmination of smart idea. The EasyTrans Ultimate is designed for you, the business, working with heat transfer vinyl (HTV), heat transfer paper, sublimation, and white toner, etc. Use the Ultimate Series heat presses to make custom T-shirts, sports wears, jerseys, banners, backpacks, sleeves, sweaters and more. Available in 40x50cm, the Ultimate heat presses feature multi-changeable lower platen. So you can work away from the heat and so many possibilities.

    Features:

    This EasyTrans Deluxe level heat press has twin lower plates, you could shuttle the upper plate from the left and right, which makes the heat transfer work more safety and get rid of the heat zone, also makes the transfer job more efficient.

    Additional features

    manual heat press

    Triple Thermal Production

    Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heatong plate with temperature protector which prevent abnormal temperature rise.

    heat press

    Thread-able & Interchangeable Base

    This EasyTrans Press is installed with a featured base: 1. Quick changeable system enables you to change the different accessory platen in few seconds. 2. The thread-able base enables you to load or rotate the garment over the lower platen.

    heat press

    Advanced LCD Controller

    This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

    double station heat press 3805-2n

    Twin Station Efficient

    The electric dual station heat press transitions from platen to platen, allowing you to thread and remove garments quickly and easily.

    heat press

    Protective Cap

    Protective Cap is safer and anti-scalding.

     heat press

    Pop-out Controller

    A pop-up controller makes instrument replacement easier.

    manual heat press

    Handle

    Handle with power-assisted function, easier to lift, save effort.

    heat press

    16X20 Heat Platen

    There is enough size to print all kinds of products.

    double station heat press

    Accepts items up to 1.97" Thick

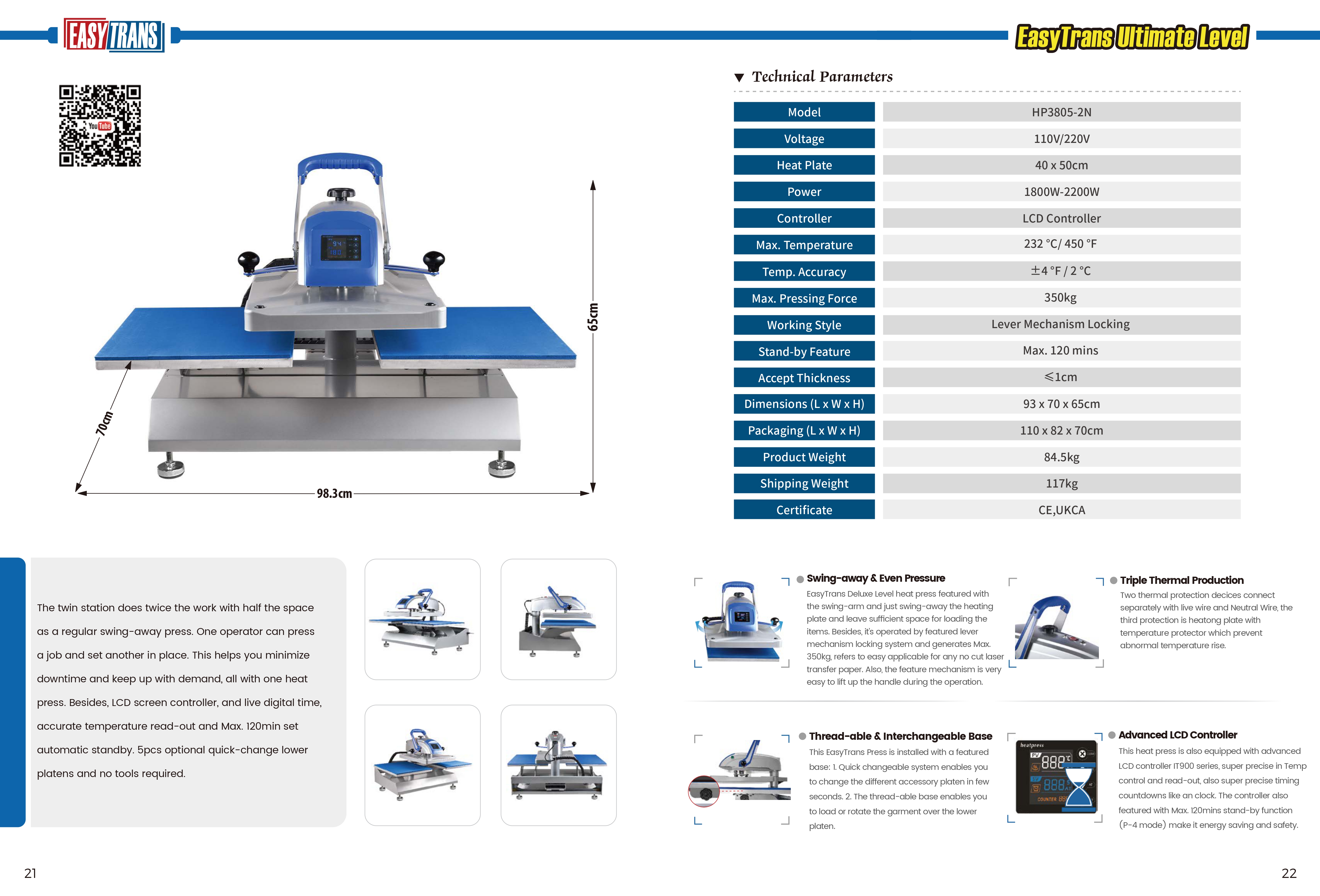

    Specifications:

    Heat Press Style: Manual
    Motion Available: Swing-away
    Heat Platen Size: 40x50cm
    Voltage: 110V or 220V
    Power: 1800-2200W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: 93 x 70 x 65cm
    Machine Weight: 84.5kg
    Shipping Dimensions: 110 x 82 x 70cm
    Shipping Weight: 117kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
