6 Tons Hydraulic Rosin Press Solventless Extraction Machine HP3809-M

  • Model NO.:

    HP3809-M

  • Description:
  • EasyPresso HRP6 Hydraulic Rosin Press generates 6 Tons of crushing force and is equipped with 75 x 120mm insulated solid aluminum dual heating plates, precise temperature and timer control with a built-in power conservation option, and a carrying handle. The pressure and ram speed is controlled by simple pumping of the cranking handle. The press purchase includes a 3-prong power cord, pump handle and instruction manual.

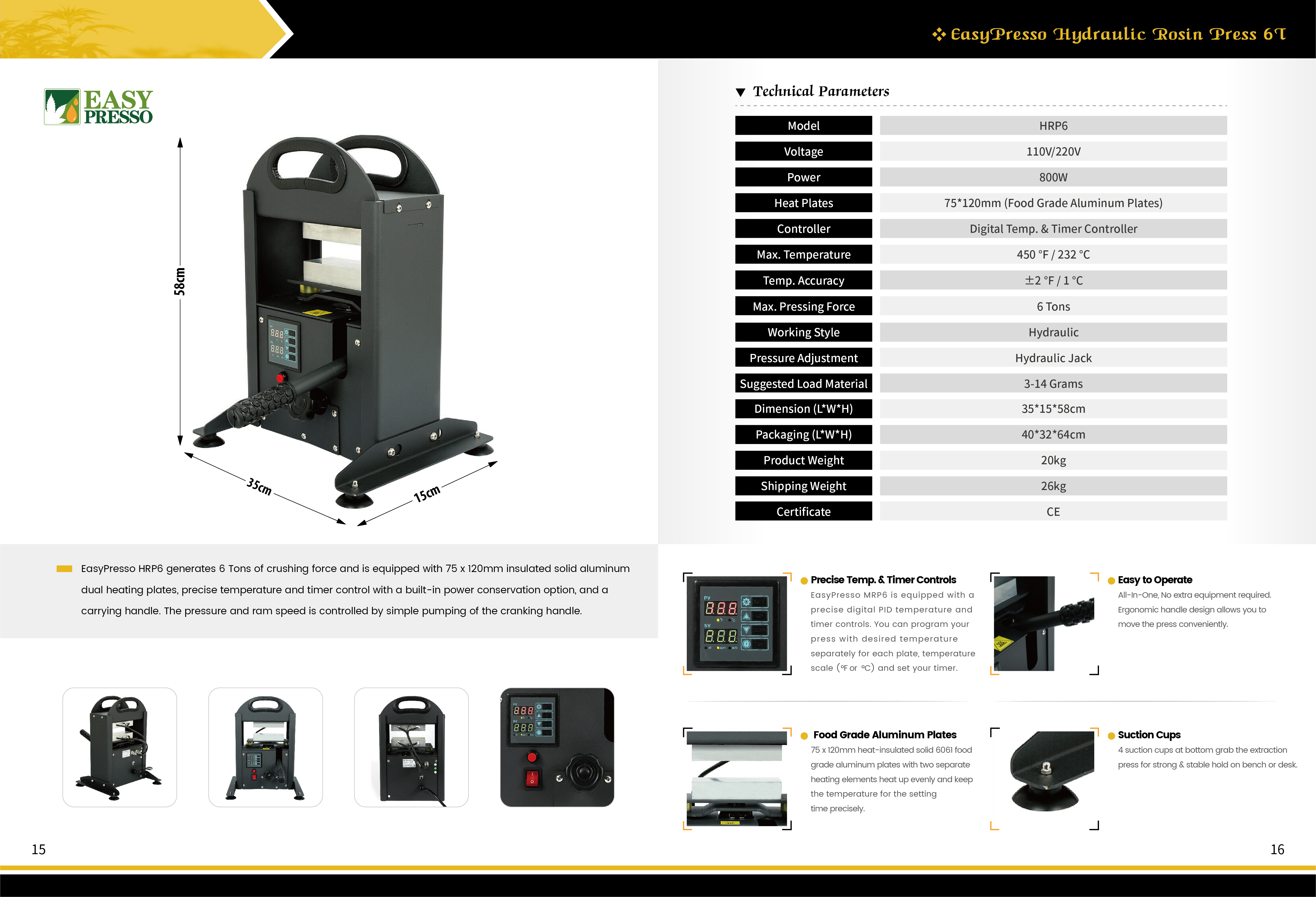

    P.S. Please click Download as PDF to save brochure and read more.


  • Style: Manual Hydraulic rosin press
  • Max. Pressing Force: 6 Tons
  • Platen Size: 3×4.7 inches
  • Dimension: 35x15x58cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Description

    Video

    Product Tags

    5 TON ROSIN PRESS

    Features:

    EasyPresso HRP6 generates 6 Tons of crushing force and is equipped with 75 x 120mm insulated solid aluminum dual heating plates, precise temperature and timer control with a built-in power conservation option, and a carrying handle. The pressure and ram speed is controlled by simple pumping of the cranking handle.

    DOUBLE HEATING: Double heating insulated solid aluminum plate, with temperature control device and handle on the front of the rosin press, very user-friendly design, more convenient to use.

    ADJUSTABLE PRESSURE: The maximum pressure can reach 6 tons, which is easy to adjust and can be suppressed quickly.

    EASY TO CARRY: Ergonomic design, easy to press and move; you can even put it in your backpack while traveling.

    Additional features

    rosin press

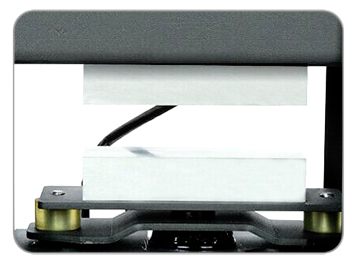

    Food Grade Aluminum Plates

    75 x 120mm heat-insulated solid 6061 food grade aluminum plates with two separate heating elements heat up evenly and keep the temperature for the setting time precisely.

    rosin press

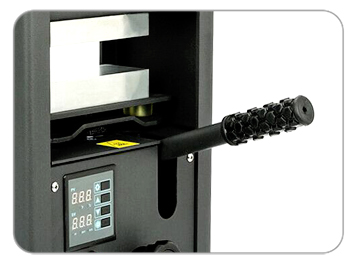

    Manual Hydraulic Jack

    This rosin press is equipped with a 5 ton manual hydraulic jack, high pressure specially for solventless extraction.

    5 ton rosin press

    Precise Temp. & Timer Controls

    EasyPresso MRP6 is equipped with a precise digital PID temperature and timer controls. You can program your press with desired temperature separately for each plate, temperature scale (°F or °C) and set your timer.

    rosin press

    Easy to Operate

    All-In-One, No extra equipment required.Ergonomic handle design allows you to move the press conveniently.

    rosin press

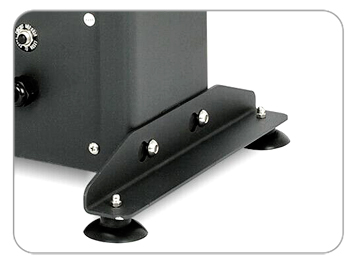

    Suction Cups

    4 suction cups at bottom grab the extraction press for strong & stable hold on bench or desk

    Specifications:

    Heat Press Style: Hydraulic and Manual
    Platen Type: Die Casting Aluminum Heating Element
    Heat Platen Size: 7.5 x 12cm
    Voltage: 110V or 220V
    Power: 1800-2000W

    Controller: LCD Control Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: 35 x 15 x 58cm
    Machine Weight: 20kg
    Shipping Dimensions: 40 x 32 x 64cm
    Shipping Weight: 26kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support

    Instrument settings:

    rosin press

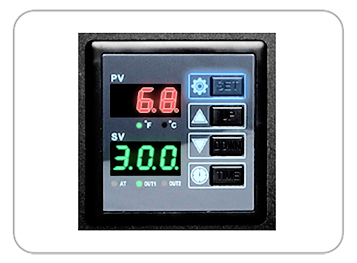

    Accurate Digital Screeen

    Equipped with precise digital PID temperature and Timer controls, You can program your press with desired separately for each plate, temperature scale(Celsius or fahrenheit) and set your time.

    rosin press

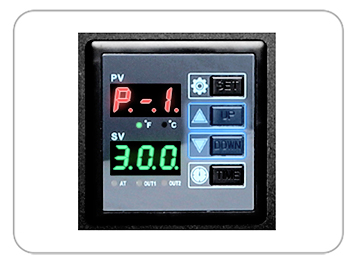

    Time Setting Mode

    P-1 : Touch SET & Up or Down Button choose Time. Then set desired time.

    rosin press

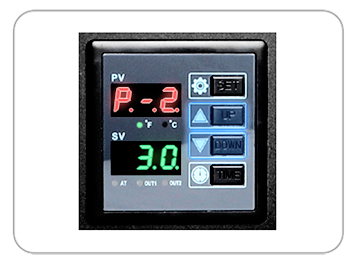

    Temperateure Setting Mode

    P-2 : Touch SET & Up or Down Button Choose Temperature.

    rosin press

    Temperateure Celsius Or Fahrenheit Choose

    P-3 : Touch SET & Up or Down Button Choose Celsius or fahrenheit. Raise up to Set Temp. Close Down Handle and Timer Counter Down.
