This swing-away 12" X 10" (30 X 24cm) heat press machine could transfer photos, words on cotton, fiber, metal, ceramic, glass and so on, suitable for producing gift, advertisement and so on. It can be able to apply transfers, letters, numbers and images onto T-shirts, garments, bags, mouse mats, jigsaw puzzles, ceramic tiles, plates and other flat surfaced items. The HP230-B has a built-in Teflon coated 12" x 10" heat platen with a full range of heating coils to allow for consistency throughout its surface. Its unique swing-away feature allows you to rotate the upper heat platen 360 degrees around. By moving the heating element aside and reducing the chance of accidentally contacting the area of heat distribution, you can work more freely with your garments and transfers on the base plate. Unlike the traditional clamshell heat press machines, the HP230-B heat transfer applies direct top-to-bottom pressure providing even contact with the surface below. The digital timer control is adjustable up to 999 seconds. The HP230-B also features a digital temperature gauge ranging from 0 - 232ºC (about 450ºF). The manual open and close handle is easy to operate and can be adjusted with the pressure knob at the rear of the machine. Its industrial strength and durability allows for long-term use. The machine is CE certified and come with 1 years free warranty.
① Large element 12" X 10" (30 X 24cm) allows transfers onto T-shirts, garments, bags, mouse mats, jigsaw puzzles, ceramic tiles, plates and other flat surfaced items.
② The machine could transfer photos, words on cotton, fiber, metal, ceramic, glass and so on.

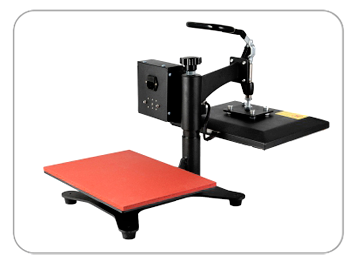

③ Swing-away design allows you to rotate the upper heat platen 360 degrees around and the heating element to be moved safely aside.
④ Digital LCD timer and temperature control makes setting more accurate.
⑤ Full-range pressure-adjustment knob allows the pressure to be adjusted according to the thickness of the material you're transferring to.
⑥ Upgraded elevated lower platen allows room for t-shirts to be easily placed into and removed from machine.
⑦ Teflon-coated element is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.
⑧ Rigid steel frame industrial strength and durability allows for long-term use.
Lever Mechanism Locking Structure

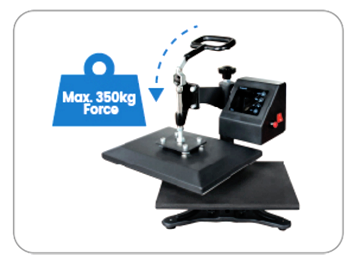

This Craft heat press generates the heaviest force in Craft Pro Family (Max. 350kg). This heat press size in A4 (23 x 30cm) and works for it meet the major heat transfer Incl. sublimation paper, HTV or heat transfer paper, also no cut laser transfer paper like Forever, NeeNah, MTC and AT&T, etc.
HP230B is actually 2IN1 featured A4 craft heat press for family or sign starter. With the quick plug (Pls reminder us if you need 2IN1 feature option), regardless of it works as a T-shirts heat press, it also can apply for the coffee mug printing with the MugMate attachment.
Advanced LCD Controller
This craft heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.
Swing-Away Safety Design
Just think about the safety issue, you will find out this swing-away design is absolute an good idea.The swing-away design helps you to keep heading element away form the working table and ensures safe layout.
Mold Shaped Base And Cover
This heat press has a mold shaped base, the base legs will not going to be bent easily during the shipping.Also the 23x30cm cover is mold shaoed which looks good.

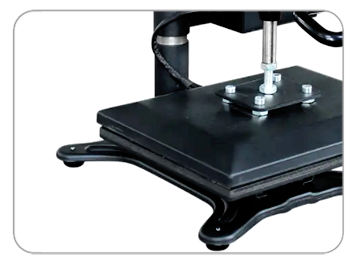

Gravity die casting technology made thicker heating platen, helps to keep heating element stay stable when heat makes it expand and cold makes it contract, also called even pressure and heat distribution guaranteed.

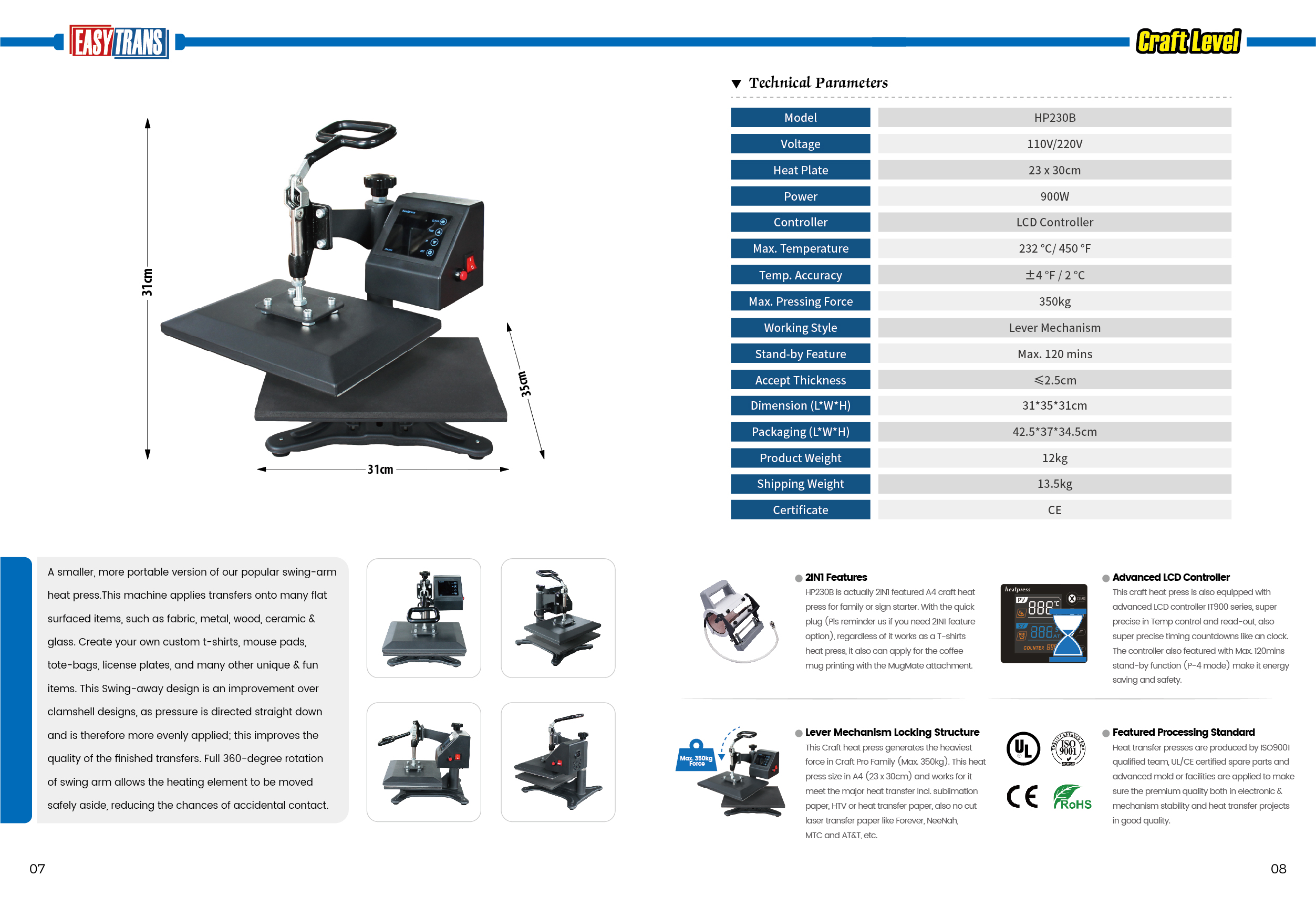

Heat Press Style: Manual
Motion Available: Swing-away/ interchangeable
Heat Platen Size: 23x30cm
Voltage: 110V or 220V
Controller: LCD Controller Panel
Max. Temperature: 450°F/232°C
Timer Range: 999 Sec.
Machine Dimensions: 31 x 35 x 31cm
Machine Weight: 12kg
Shipping Dimensions: 42.5 x 37 x 34.5cm
Shipping Weight: 13.5kg
1 Year entire warranty
Lifetime technical support
