Semi-auto Cap Heat Press Transfer Printing Machine for Hats

  • Model NO.:


  • Description:
  • Brand new appearance and structure design,the Semi-auto open cap heat press is suitable for printing most caps. The convenient hydraulic automatic opening feature allows freedom to place the transfers quickly making batching large orders easy. Includes digital controller to preset desired time and an audible alarm will sound when time is complete.

    P.S. Please click instruction download as PDF and read more.

  • Style: Auto-open Cap Heat Transfer
  • Features: Clamshell/Auto-open
  • Platen Size: 9.5x18cm
  • Dimension: 62x46x36cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Contact: WhatsApp/Wechat: 0086 - 150 6088 0319
  • Description

    Product Tags

    Full Range Pressure Adjustment Knob - Easy to operate control allows pressure to be adjusted based on the thickness of the material you are transferring. Clamshell design,space saving design allows plenty of working room while keeping your hands a safe distance from the heated element. It could transfer colorful photos,words on cap, suitable for producing gifts, decorations.


    Functioning as a magnetic auto-open cap press, with molded cap silicon, this cap press enables you to print the front, back and sides of a cap easily. Progressive designed molded cap siliconhelps to reduce creasing and scorching. It also o¬ers heat-free workspace, touch screen settings, live digital time, temperature readouts.

    Additional features

    cap heat press

    Semi-auto & OTC Pressure

    Locks down easily with magnetic assist, causing less fatigue on wrists and shoulders. This one provides Over The-Centre (OTC) pressure and high watt density to ensure consistently even print results.

    cap heat press

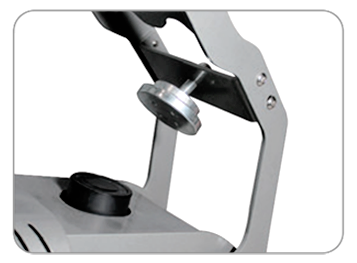

    Sturdy Fixed Hook

    With the new design for this hook, the cap can be fixed very well and easy for customers to operate once the press start or finish. Make each of the caps extending well.

    heat press

    Advanced LCD Controller

    This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

    cap heat press

    Product Structre

    Hydraulic structure, the overall structure of the machine is strong.

    cap heat press

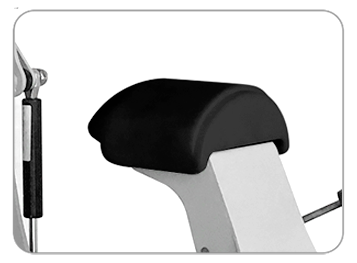

    Hat Fixing Pad Holder

    Silicone pad and controllable handles can hold the hat firmly and will not make the pattern print crooked.

    cap press machine

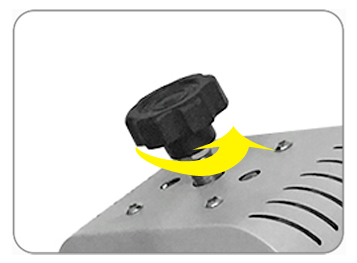

    Adjust The Pressure

    Adjust the pressure by rotating the button to adapt to different material thicknesses.


    Heat Press Style: Semi-Auto
    Motion Available: Clamshell/ Auto-open
    Heat Platen Size: 9.5x18cm
    Voltage: 110V or 220V
    Power: 600W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: 45x27x45cm
    Machine Weight: 20kg
    Shipping Dimensions: 59x33x53cm
    Shipping Weight: 26kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
