Slide Out Auto Open Sublimation Heat Transfer Press Machine

  • Model NO.:


  • Description:
  • The high pressure heat press machine is famous of its Slide-out & Auto-open design. The auto open function saves time and effort allowing the operator to apply more transfers compare to traditional manual heat press. This sublimation heat press brings greater productivity in the sublimation. Two sizes available: 38x38cm and 40x50cm.

    P.S. Please click Download as PDF to save brochure and read more.

  • Style: Semi-auto heat press
  • Features: Clamshell/Slide-out Base/Auto-open
  • Dimension: 86x50x62cm(40x50cm)
  • Platen Size: 38x38/40x50cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Contact: WhatsApp/Wechat: 0086 - 150 6088 0319
  • Description

    Product Tags



    HP3804D-X is a EasyTrans Advanced Level equipment for heat transfer users, the heat press has semi auto-open function and a slide out base which saves time and works more efficient. Besides, it’s over-center pressure adjustment and accurate laser frame enable an even pressure and make it an entry-level press for no cutting laser transfer paper.

    Additional features

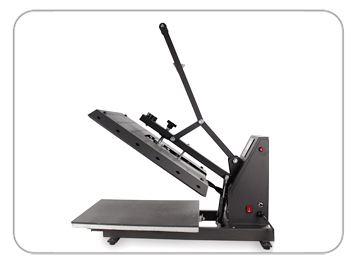

    clamshell pull out heat press

    Clamshell Design

    Clamshell design, it's simple but reliable for sign starters. User pays a small amount money and is able to make considerable business. Also this heat press is space saving and easily to use.

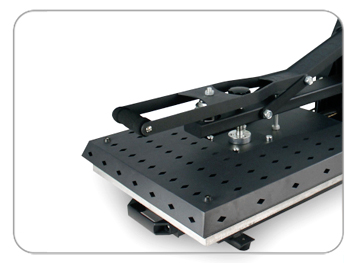

    clamshell heat press

    Double Productor Cover

    This heat press has a double protector cover which looks better, also helps to ensure heat insulation and more safety.

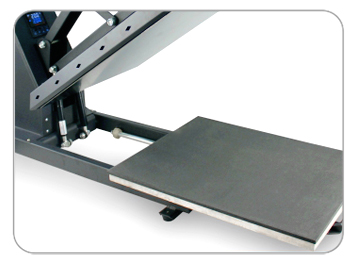

    pull out heat press

    Pull-out Drawer Design

    This heat press has a pull-out drawer, which help to make ensure a heat-free area when putting heat transfer materials on  the working table, and ensure the safety.

    heat press

    Premium Quality Heat Plate

    Die casting heating element made by reasonable layout heating tubes and 6061 qualified aluminum, Say. 8 pieces heat tubes for 38 x 38cm heat plate. Make sure even heat and pressure distribution, with the premium quality of the lower aluminum plate, all together guaranteed the good transfer job.

    heat press machine

    LCD Touch Controller

    Colorful LCD screen is self-design, through 3 years development, now is more powerful and contain function:accurate temperature display & control, auto time counting, per-alarm and temperature collation.

    auto open heat press

    Auto-Release Style

    This XINHONG heat press is over-center-pressure adjustment model, also it carries a magnetic auto-release function, means the heat press will be releasing the platen automatically when timing is finished.


    Heat Press Style: Manual
    Motion Available: Auto Open/Slide Out Drawer
    Heat Platen Size: 38 x 38cm, 40 x 50cm, 40 x 60cm
    Voltage: 110V or 220V
    Power: 1400-2200W

    Controller: LCD Controller Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: /
    Machine Weight: 29kg
    Shipping Dimensions: 86 x 50 x 62cm (38 x 38cm)
    Shipping Weight: 33kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
