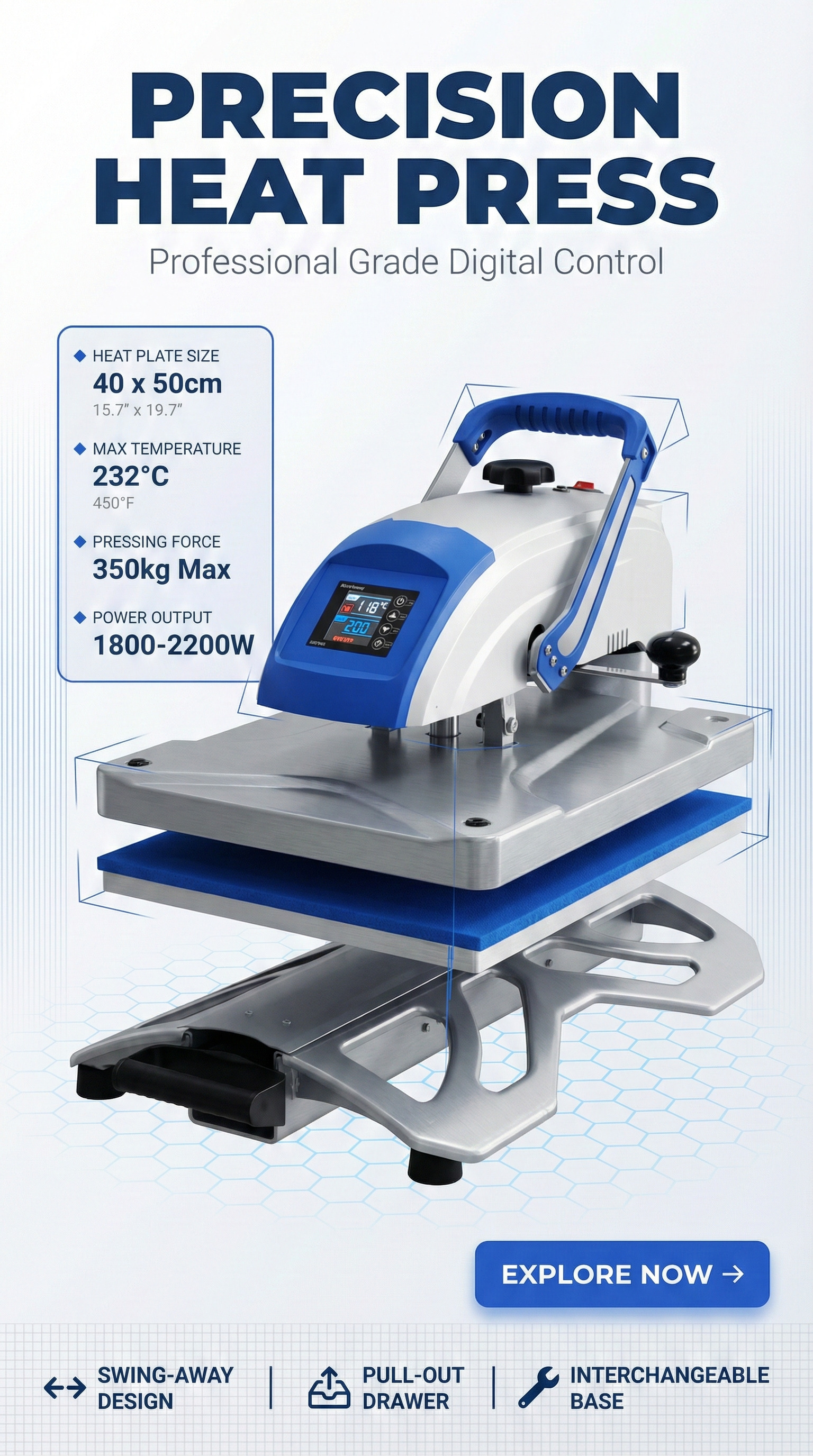

40x50cm Swing-away Manual Heat Press Machine W/Slide-out Drawer

  • Model NO.:

    HP3805N

  • Description:
  • Functioning as either a swinger or drawer heat press, the 40 x 50cm EasyTrans Manual Pro Heat Press (SKU#: HP3805N) offers a heat-free workspace, touch screen settings, live digital time, temperature readouts. Plus, with lower platen thread-ability, you can position a garment once, rotate, and decorate any area.

    P.S. Please click Download as PDF to save brochure and read more.


  • Style: Manual Heat Press
  • Feature: Swing-away/Slide-out Base/Interchangeable/Threadable
  • Platen Size: 40 x 50cm
  • Dimension: 43.5x74.5x57.5cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 1 Year
  • Description

    Video

    Product Tags

    Swing away heat press

    The EasyTrans Ultimate Series is a solution of any professional transfers. It’s line of higher-end heat press and culmination of smart idea. The EasyTrans Ultimate is designed for you, the business, working with heat transfer vinyl (HTV), heat transfer paper, sublimation, and white toner, etc. Use the Ultimate Series heat presses to make custom T-shirts, sports wears, jerseys, banners, backpacks, sleeves, sweaters and more. Available in 40x50cm or 33x45cm, the Ultimate heat presses feature a slide-out & multi-changeable lower platen. So you can work away from the heat and so many possibilities.

    Features:
    Functioning as either a swinger or drawer heat press, the 40 x 50cm EasyTrans Manual Pro Heat Press (SKU#: HP3805N) offers a heat-free workspace, touch screen settings, live digital time, temperature readouts. Plus, with lower platen thread-ability, you can position a garment once, rotate and decorate any area.

    Additional features

    manual heat press

    Triple Thermal Production

    Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heatong plate with temperature protector which prevent abnormal temperature rise.

    heat press

    Thread-able & Interchangeable Base

    This EasyTrans Press is installed with a featured base: 1. Quick changeable system enables you to change the different accessory platen in few seconds. 2. The thread-able base enables you to load or rotate the garment over the lower platen.

    heat press

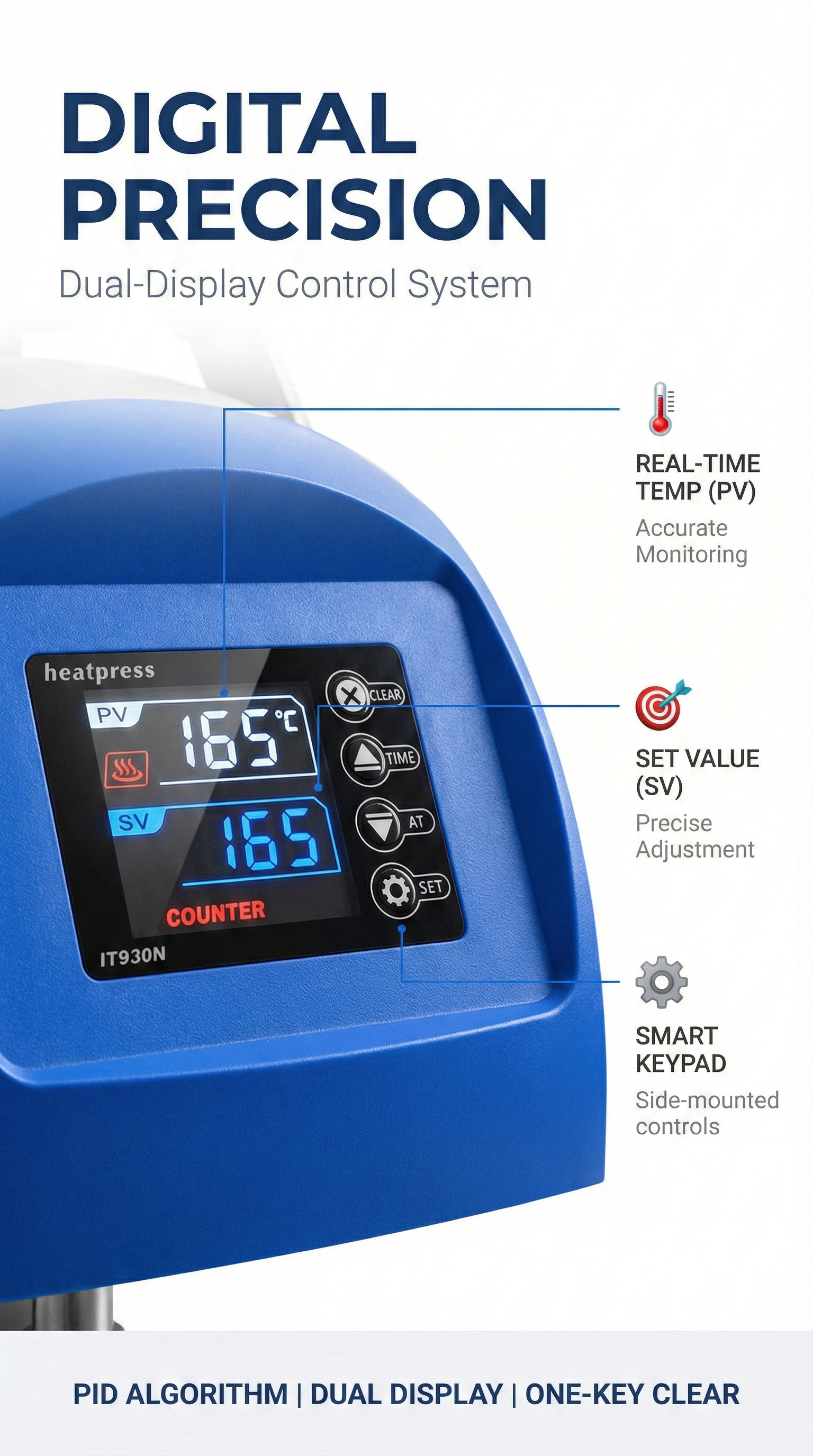

    Advanced LCD Controller

    This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

    heat press

    Protective Cap

    Protective Cap is safer and anti-scalding.

     heat press

    Pop-out Controller

    A pop-up controller makes instrument replacement easier.

    heat press

    16X20 Heat Platen

    There is enough size to print all kinds of products.

    swing away heat press

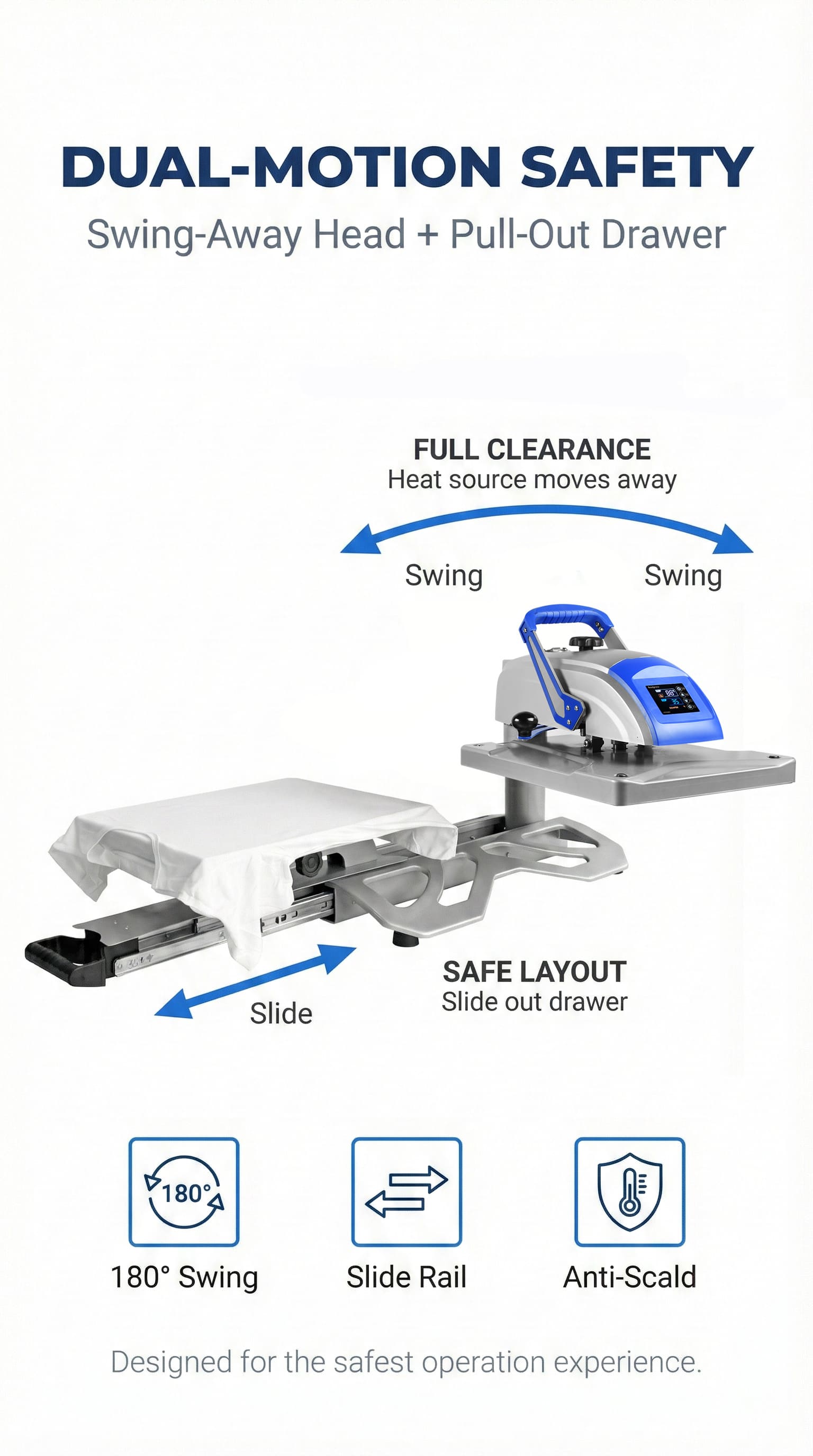

    Maximum Swing Angle 145 Degree

    swing away heat press

    Accepts items up to 1.97" Thick

    manual heat press

    Handle

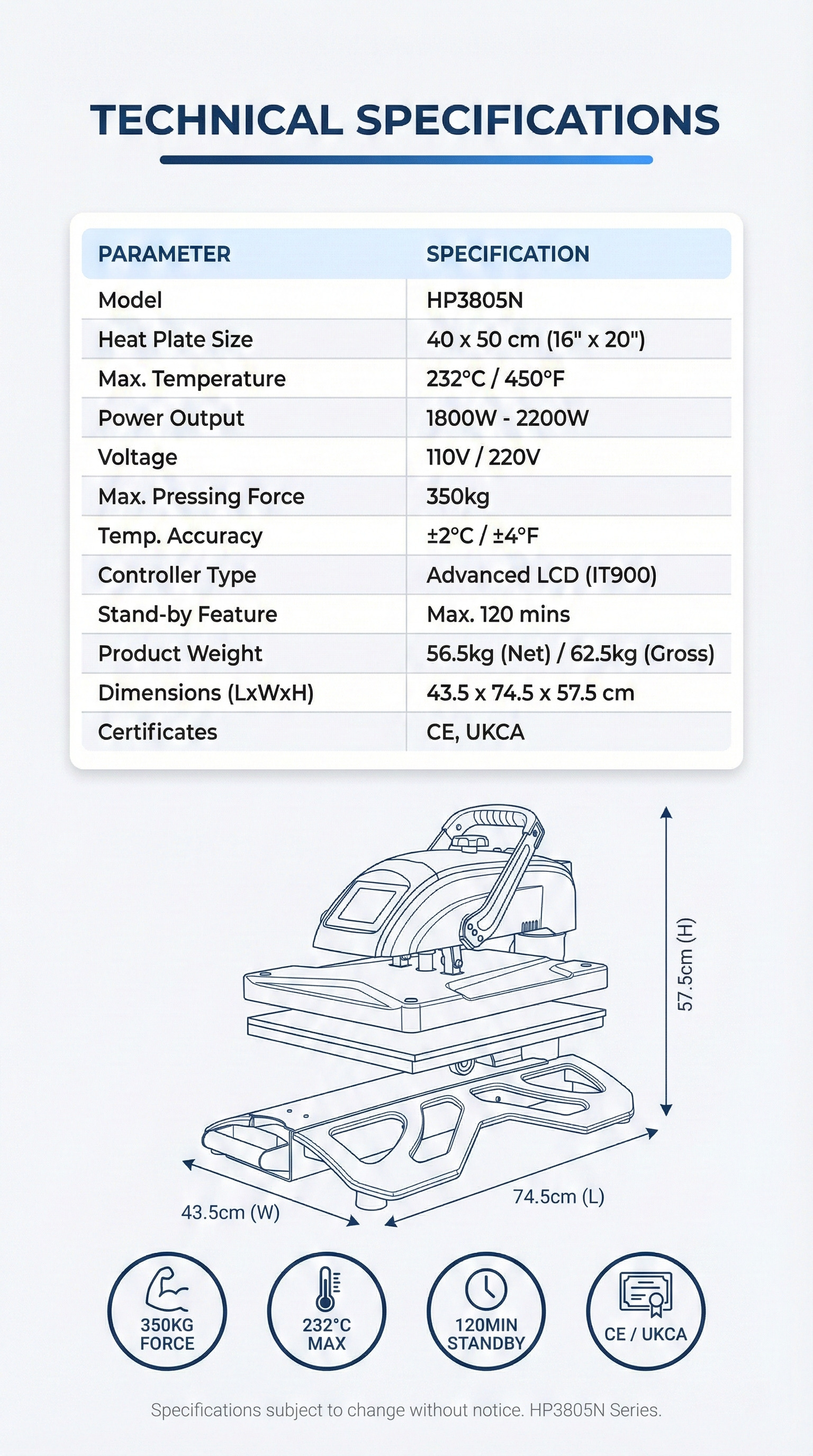

    Specifications:

    Heat Press Style: Manual
    Motion Available: Swing-away/ Slide-out Drawer
    Heat Platen Size: 40x50cm
    Voltage: 110V or 220V
    Power: 1800-2200W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: 74.5 x 43.5 x 57.5cm
    Machine Weight: 56.5kg
    Shipping Dimensions: 92 x 52.5 x 60cm
    Shipping Weight: 62.5kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
