Wholesale 40x50cm Prime Swing-away Manual T-shirt Heat Press Machine W/Movable Caddie Stand Manufacturer and Supplier

40x50cm Prime Swing-away Manual T-shirt Heat Press Machine W/Movable Caddie Stand

Model NO.:

HP3805-NC PRO

Description:

Functioning as a swinger and sit on a movable heat press caddie, this 40 x 50cm prime heat press offers a heat-free workspace, LCD screen controller, live digital time, accurate temperature read-out and Max. 120min set automatic standby. Compatible with over 10 kinds of optional quick-change lower platens.

P.S. Please click Download as PDF to save brochure and read more.

Style: Swing-away heat press with stand

Features: Swing-away/Interchangeable/Threadable

Platen Size: 40 x 50cm

Dimension: 92*52.5*60cm /＋10cm Height

Certificate: CE （EMC, LVD, RoHS）

Warranty: 12 Months

Contact: WhatsApp/Wechat: 0086 - 150 6088 0319

Dealer Price Instruction

Description

Product Tags

Features:

This EasyTrans Deluxe heat press sits on a movable caddie directly, the fives legs style make sure heat press very stable and no worry for tripping over during the swing-away. The two hand-wheels on the caddie stand, one for Max. 10cm height adjustment, another one for left/ right rotation and fixed permanently.

Additional features

Swing-away & Even Pressure

EasyTrans Deluxe Level heat press featured with the swing-arm and just swing-away the heating plate and leave sufficient space for loading the items. Besides, it’s operated by featured lever mechanism locking system and generates Max.350kg, refers to easy applicable for any no cut laser transfer paper. Also, the feature mechanism is very easy to lift up the handle during the operation.

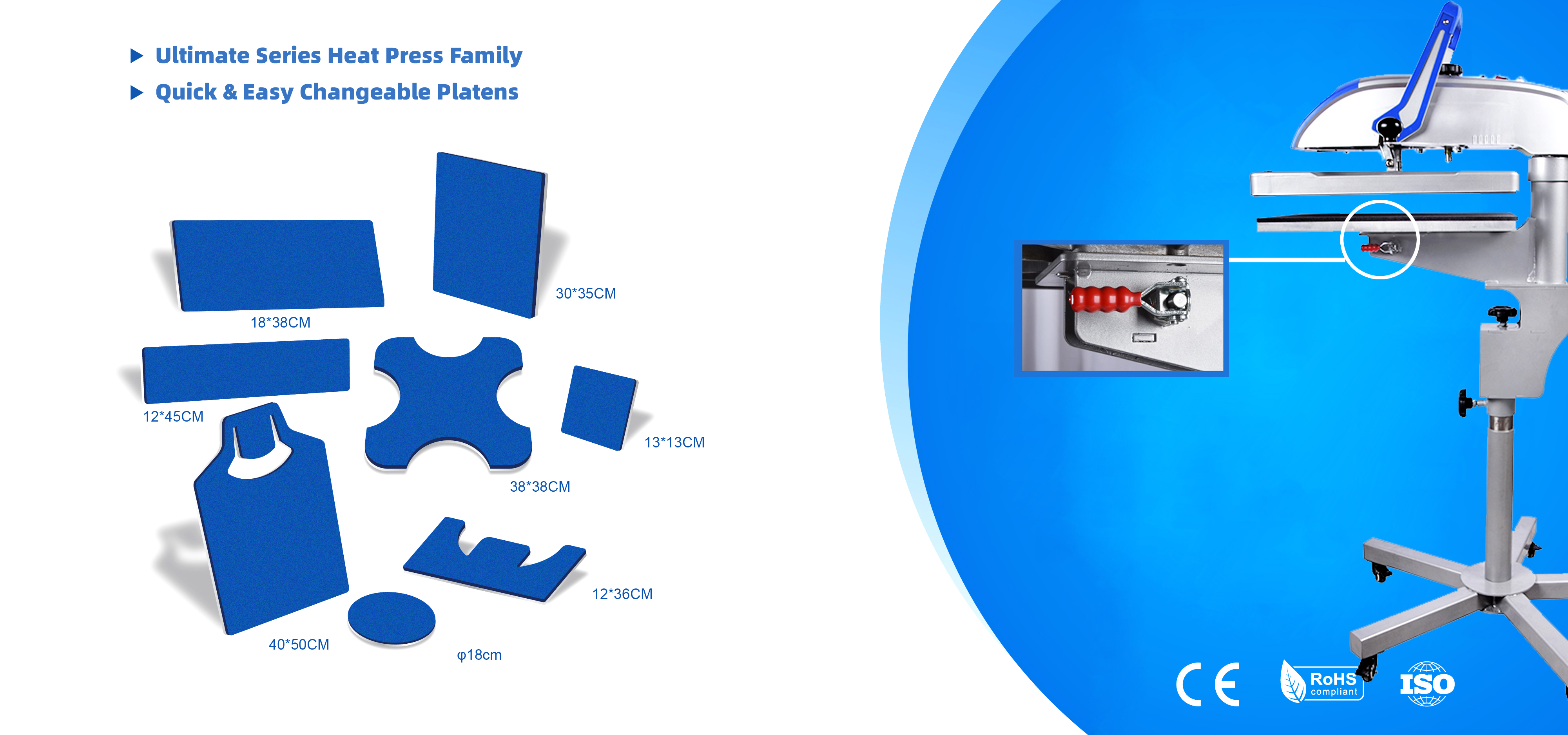

Thread-able & Interchangeable Base

This EasyTrans Press is installed with a featured base: 1. Quick changeable system enables you to change the different accessory platen in few seconds. 2. The thread-able base enables you to load or rotate the garment over the lower platen.

Advanced LCD Controller

This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

Triple Thermal Production

Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heatong plate with temperature protector which prevent abnormal temperature rise.

Featured Heat Press Caddie

Ergonnomtic adjustable stand, two hand wheel individual adjust the height and control left or right direction. Five wheeked legs guaranteed smooth-rolling mobility and stability.

Handle

Handle with power-assisted function, easier to lift, save effort.

Pop-out Controller

A pop-up controller makes instrument replacement easier.

Protective Cap

Protective Cap is safer and anti-scalding.

16X20 Heat Platen

There is enough size to print all kinds of products.

Maximum Swing Angle 145 Degree

Accepts items up to 1.97" Thick

Specifications:

Heat Press Style: Manual
Motion Available: Swing-away/ with stand
Heat Platen Size: 40x50cm
Voltage: 110V or 220V
Power: 1800-2200W

Controller: Screen-touch LCD Panel
Max. Temperature: 450°F/232°C
Timer Range: 999 Sec.
Machine Dimensions: 92 x 52.5 x 60cm
Machine Weight: 42kg+22.5kg
Shipping Dimensions: 79 x 54 x 59cm, 90 x 90 x 23cm
Shipping Weight: 57kg+40kg

CE/RoHS compliant
1 Year entire warranty
Lifetime technical support
