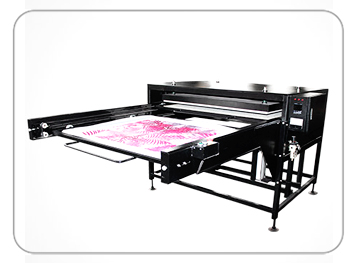

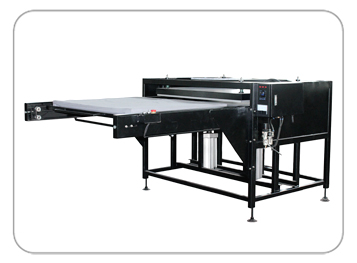

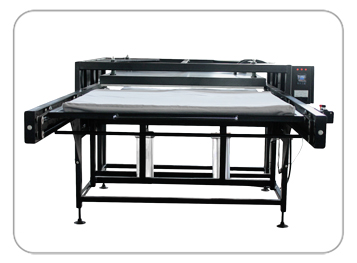

Twin Plates Big Size Sublimation Heat Press Transfer Printing Machine

  • Model NO.:

    B4-N

  • Description:

    • Industrial Mate Max is a large format pneumatic heat transfer press built for pressing a wide variety of materials, and operates with a smooth drawer-style front-loading motion & high pressure down-top pneumatic with fully adjustable PSI control.

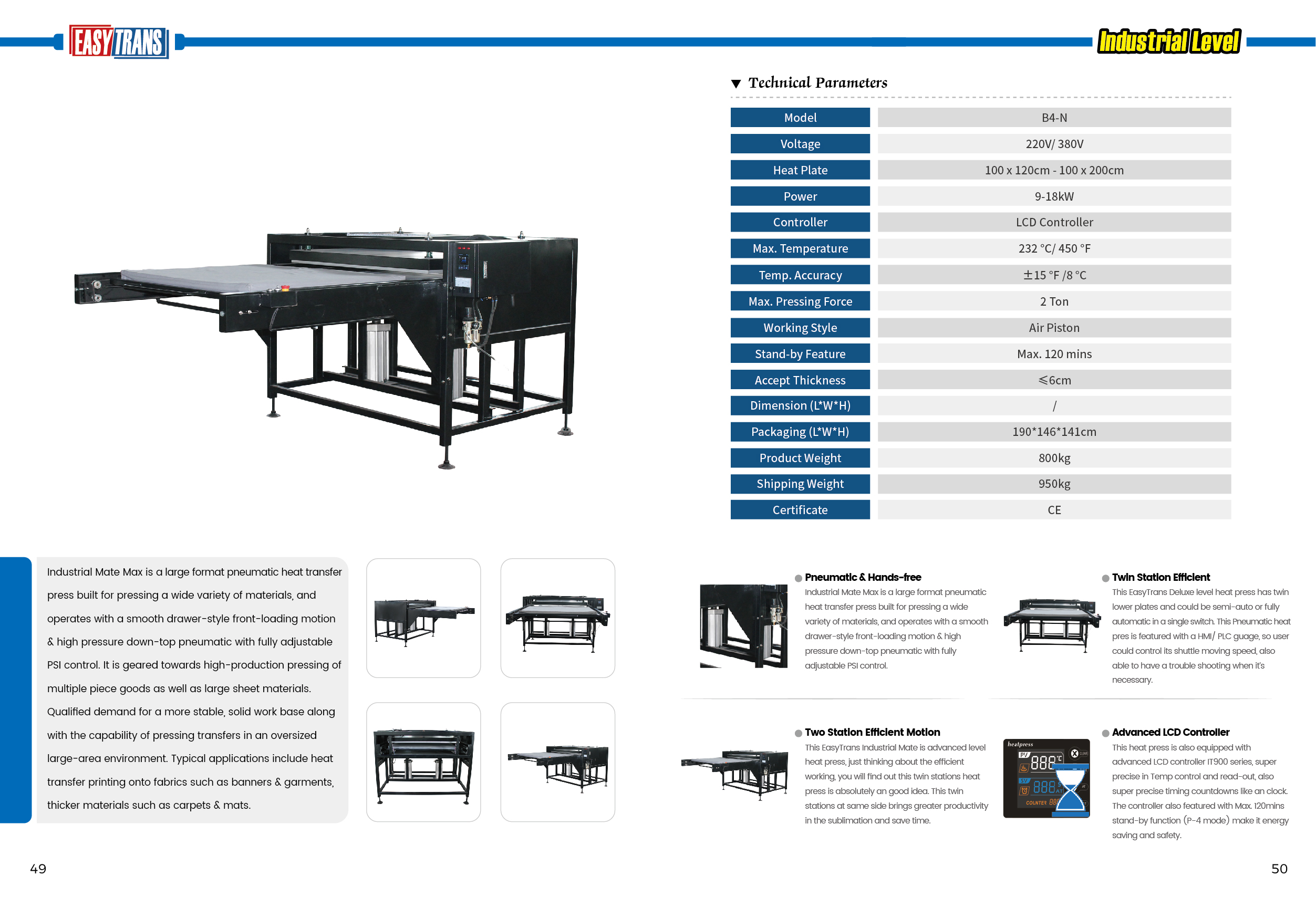

    P.S. Please click Download as PDF to save brochure and read more.


  • Style: Twin Plates Big Size Heat Press
  • Features: Slide-out Base/Auto-open
  • Platen Size: 100 x 120cm /100 x 200cm
  • Packaging: 190x146x141cm
  • Certificate: CE （EMC, LVD, RoHS）
  • Warranty: 12 Months
    • Instruction

    Description

    Video

    Product Tags

    EasyTran-heat-press-family-21

    Features:

    It is geared towards high-production pressing of multiple piece goods as well as large sheet materials. Qualified demand for a more stable, solid work base along with the capability of pressing transfers in an oversized large-area environment. Typical applications include heat transfer printing onto fabrics such as banners & garments, thicker materials such as carpets & mats.

    Additional features

    large format heat press

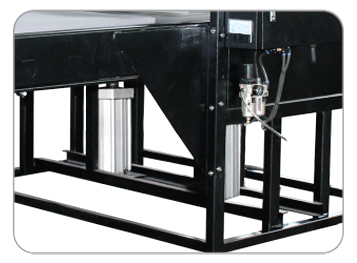

    Pneumatic & Hands-free

    Industrial Mate Max is a large format pneumatic heat transfer press built for pressing a wide variety of materials, and operates with a smooth drawer-style front-loading motion & high pressure down-top pneumatic with fully adjustable PSI control.

    large format heat press

    Twin Station Efficient

    This EasyTrans Deluxe level heat press has twin lower plates and could be semi-auto or fully automatic in a single switch. This Pneumatic heat pres is featured with a HMI/ PLC guage, so user could control its shuttle moving speed, also able to have a trouble shooting when it’s necessary.

    large format heat press

    Two Station Efficient Motion

    This EasyTrans Industrial Mate is advanced level heat press, just thinking about the efficient working, you will find out this twin stations heat press is absolutely an good idea. This twin stations at same side brings greater productivity in the sublimation and save time.

    large format heat press

    Large Format Dye Sublimation

    This is large format series heat press with max. available size in 80 x 100cm, and available for both light or thick sublimation products like texitiles, chromaluxe, sublimation, ceramic tiles, mouse pads, MDF boards, etc.

    heat press

    Advanced LCD Controller

    This is large format series heat press with max. available size in 80 x 100cm, and available for both light or thick sublimation products like texitiles, chromaluxe, sublimation, ceramic tiles, mouse pads, MDF boards, etc.

    large format heat press hp680 5

    CE/UL Certidied Spare Parts

    Spare parts used on XINHONG heat presses are either CE or UL certified, which ensure heat press remain stable working condition and lower fail rate.

    Specifications:

    Heat Press Style: Pneumatic
    Motion Available: Auto-open/ Slide-out Drawer
    Heat Platen Size: 100 x 120cm - 100 x 200cm
    Voltage: 220V/ 380V
    Power: 9000-18000W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: /
    Machine Weight: 800kg
    Shipping Dimensions: 190 x 146 x 141cm
    Shipping Weight: 950kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
