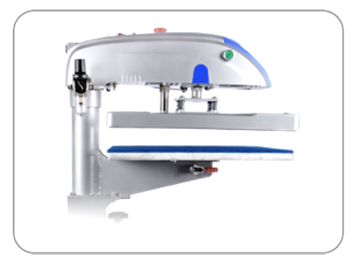

40x50cm Prime Swing-away Pneumatic Heat Press Machine W/Adjustable Caddie Stand

  • Model NO.:

    B1-NC PRO

  • Description:
  • Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered heat press features a 40*50cm heated upper platen, swing motion for heat-free workplace. And it sits on a moveable heat press caddie with Max. 10cm height adjustment.

    P.S. Please click Download as PDF to save brochure and read more.


  • Style: Swing-away Pneumatic Heat Press
  • Features: Swing-away/Auto-open/Interchangeable/Threadable
  • Platen Size: 40 x 50cm
  • Dimension: 79x56x52cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Contact: WhatsApp/Wechat: 0086 - 150 6088 0319
  • Description

    pneumatic heat press

    Features:

    Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered heat press features a 40*50cm heated upper platen, swing motion for heat-free workplace. And it sits on a moveable heat press caddie with Max. 10cm height adjustment. Plus, with thread-ability design, you can position a garment once, rotate, and decorate any area.

    Additional features

    heat press

    Triple Thermal Production

    Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heatong plate with temperature protector which prevent abnormal temperature rise.

    heat press

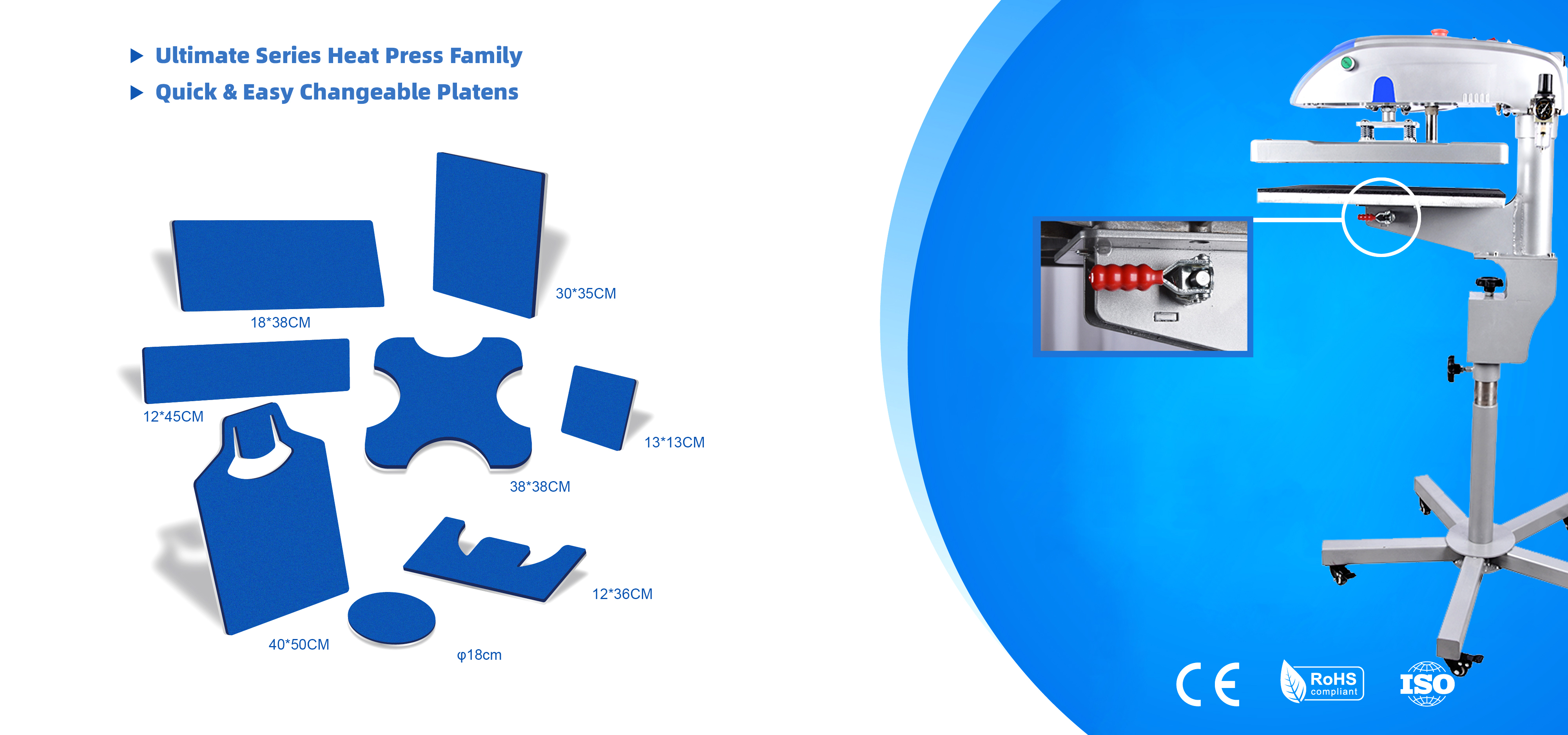

    Thread-able & Interchangeable Base

    This EasyTrans Press is installed with a featured base: 1. Quick changeable system enables you to change the different accessory platen in few seconds. 2. The thread-able base enables you to load or rotate the garment over the lower platen.

    heat press

    Advanced LCD Controller

    This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

    Pneumatic Heat Press

    Two Muffler Throttle Valve

    Two muffler throttle valve to adjust speed of heat platen up and down.

     heat press

    Pop-out Controller

    A pop-up controller makes instrument replacement easier.

    heat press

    Protective Cap

    Protective Cap is safer and anti-scalding.

    heat press

    Four Support Springs

    Ensure balanced pressure ditribution.

    16x20 heat press

    16X20 Heat Platen

    There is enough size to print all kinds of products.

    Pneumatic Heat Press

    Accepts items up to 1.97" Thick

    Pneumatic Heat Press B1-NC 3

    Five Wheeled Legs

    Ergonnomtic adjustable stand, two hand wheel individual adjust the height and control left or right direction. Five wheeked legs guaranteed smooth-rolling mobility and stability.

    heat press

    User Safe Two-hand Operation

     heat press

    Maximum Swing Angle 145 Degree

    Specifications:

    Heat Press Style:Pneumatic
    Motion Available: Swing-away/ Auto open
    Heat Platen Size: 40x50cm
    Voltage: 110V or 220V
    Power: 1800-2200W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: 79 x 56 x 52cm
    Machine Weight: 42kg+22.5kg
    Shipping Dimensions: 92 x 52.5 x 60cm
    Shipping Weight: 57kg+40kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
