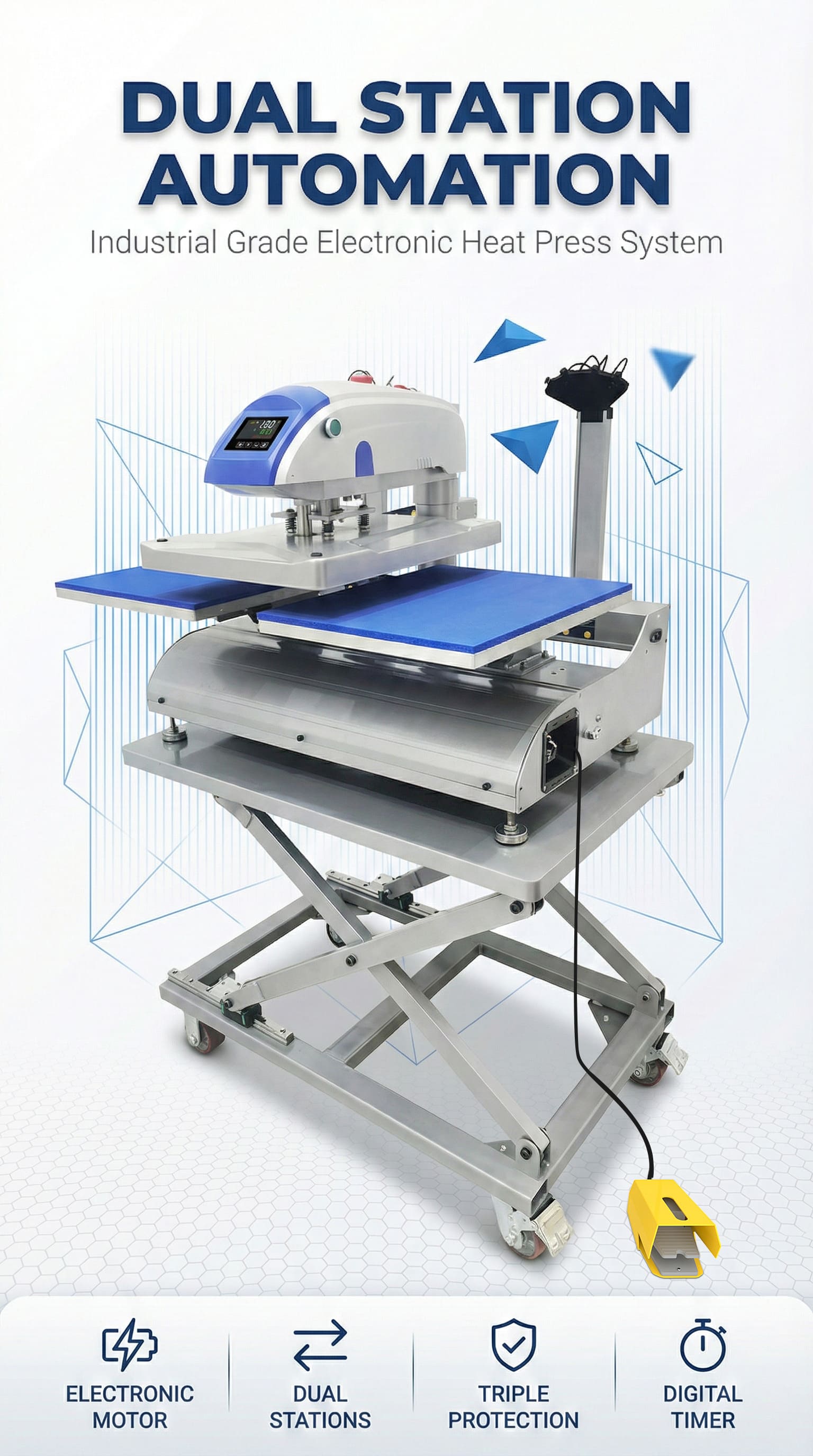

40x50cm Prime Dual Plates Fully Automatic Electric Heat Transfer Printing Machine

  • Model NO.:

    B2-2N

  • Description:
  • This electronic heat press is the top-of-the-line machine when it comes to mass production at high quality levels. This unit can handle anything – large or small garments, multiple ceramic tiles, and many other substrates. It does not require compressed air, which makes it more convenient. It features high efficiency & excellent pressure, can operate in full-auto, or semi-auto modes.

    P.S. Please click Download as PDF to save brochure and read more.


  • Style: Dual Plates Electric Heat Transfer
  • Features: Swing-away/Auto-open/Interchangeable/Threadable
  • Platen Size: 40 x 50cm
  • Dimension: 98.3*70*65cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Description

    Video

    Product Tags

    https://www.xheatpress.com/2019-prime-dual-plates-shuttle-electric-heat-transfer-printing-machine-product/

    This is a EasyTrans Deluxe Level heat press is featured with electronic motor, which can generate Max. 360kg down force and accept Max. 4.5cm thick items. This heat press is 1st choice for professional users those who are applying premium transfers like no cutting laser transfer paper.

    Features:

    This EasyTrans Deluxe level heat press has twin lower plates and could be semi-auto or fully automatic in a single switch. This electric heat pres is featured with a HMI/ PLC guage, so user could control its shuttle moving speed, also able to have a trouble shooting when it’s necessary.

    Additional features

    heat press

    Triple Thermal Production

    Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heating plate with temperature protector which prevent abnormal temperature rise.

    heat press

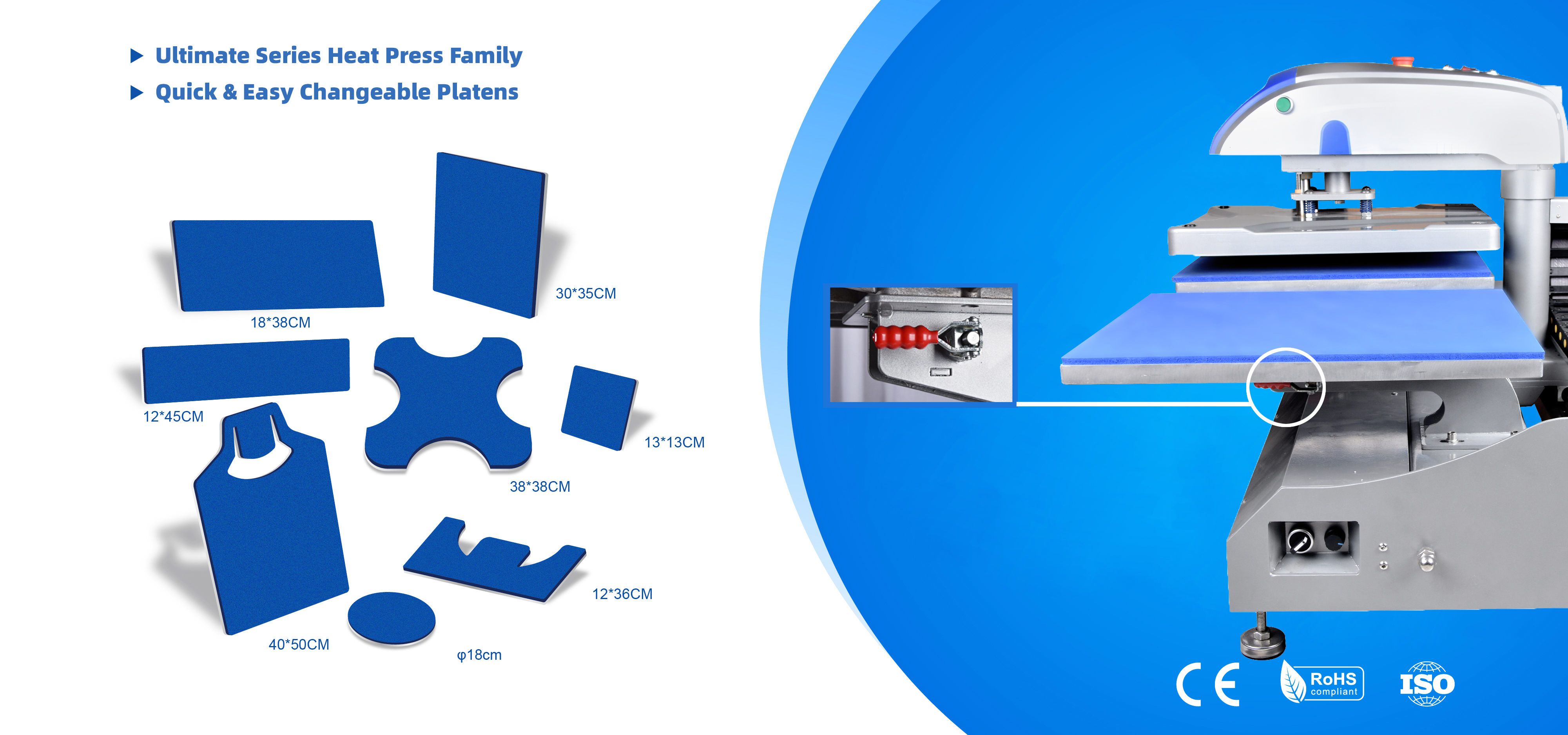

    Thread-able & Interchangeable Base

    This EasyTrans Press is installed with a featured base: 1. Quick changeable system enables you to change the different accessory platen in few seconds. 2. The thread-able base enables you to load or rotate the garment over the lower platen.

     heat press

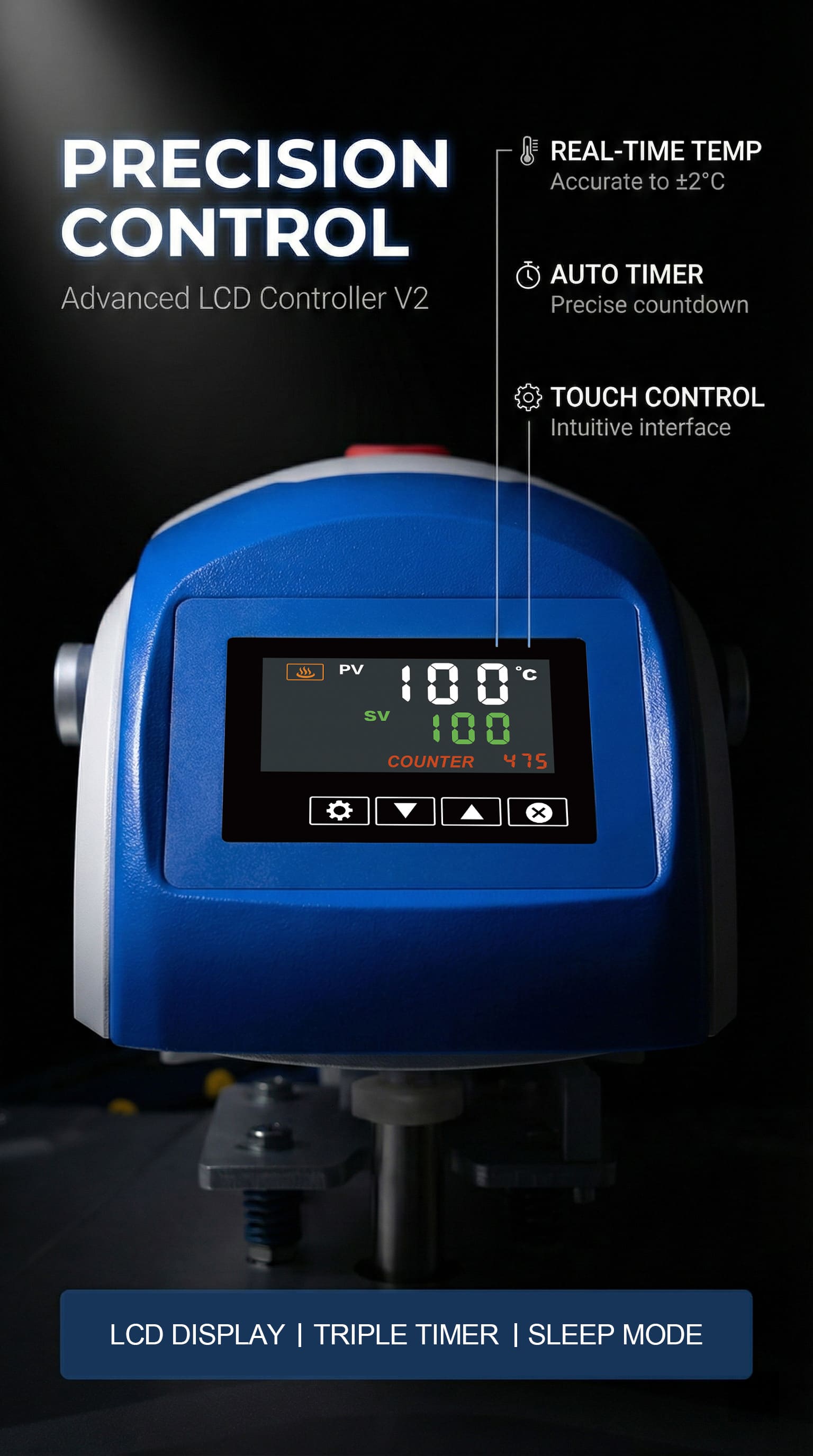

    Advanced LCD Controller

    This heat press is also equipped with advanced LCD controller AT700 series, super precise in Temp control and read-out. User could set the applying pressure by controller setting (P-4 mode). The controller is also featured with Max. 120mins stand-by function (P-5 mode) make it energy saving and safety.

    heat press

    Protective Cap

    Protective Cap is safer and anti-scalding.

     heat press

    Pop-out Controller

    A pop-up controller makes instrument replacement easier.

    16x20 heat press

    16X20 Heat Platen

    There is enough size to print all kinds of products.

    double station electric heat press

    Double Station

    The electric dual station heat press transitions from platen to platen, allowing you to thread and remove garments quickly and easily.

    heat press

    Four Support Springs

    Ensure balanced pressure ditribution

    double station electric heat press

    User Safe Two-hand Operation

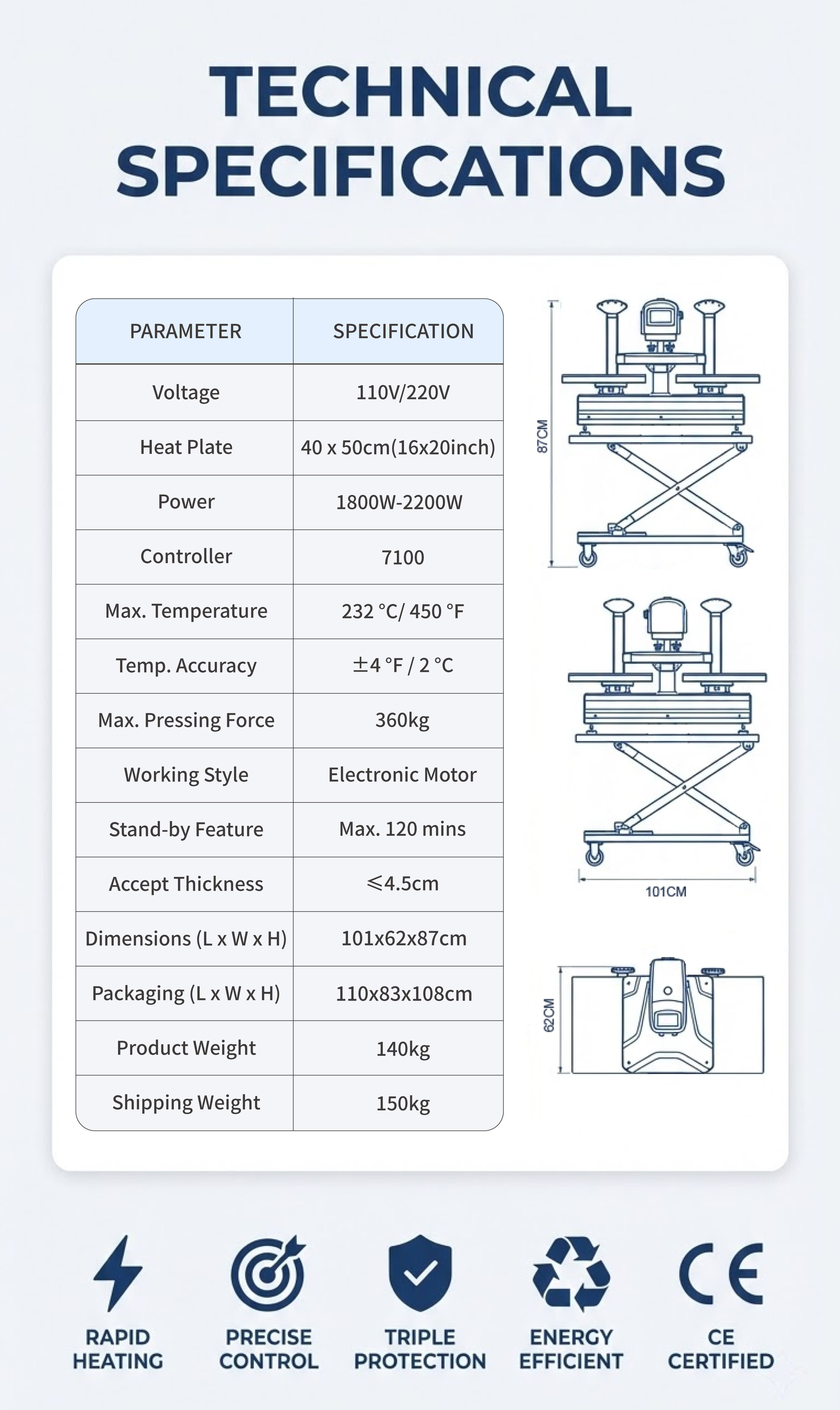

    Specifications:

    Heat Press Style: Electric
    Motion Available: Swing-away/ Auto-open
    Heat Platen Size: 40x50cm
    Voltage: 110V or 220V
    Power: 1800-2200W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: 94.7 x 72.5 x 71.7cm
    Machine Weight: 125kg
    Shipping Dimensions: 110 x 83 x 87cm
    Shipping Weight: 140kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
