40x50cm Prime Swing-away Electric Heat Press Machine With Movable Caddie

  • Model NO.:

    B2-NC PRO

  • Description:
  • With superior quality and high performance, this heat press brings you greater productivity in the sublimation. Electric design is with lower noise compared to heat press machine with air compressor. It is suitable for any sublimation or transferable product no matter which HTV or transfer paper incl. Trim-free laser paper. 5pcs optional quick-change lower platens, no tools required.

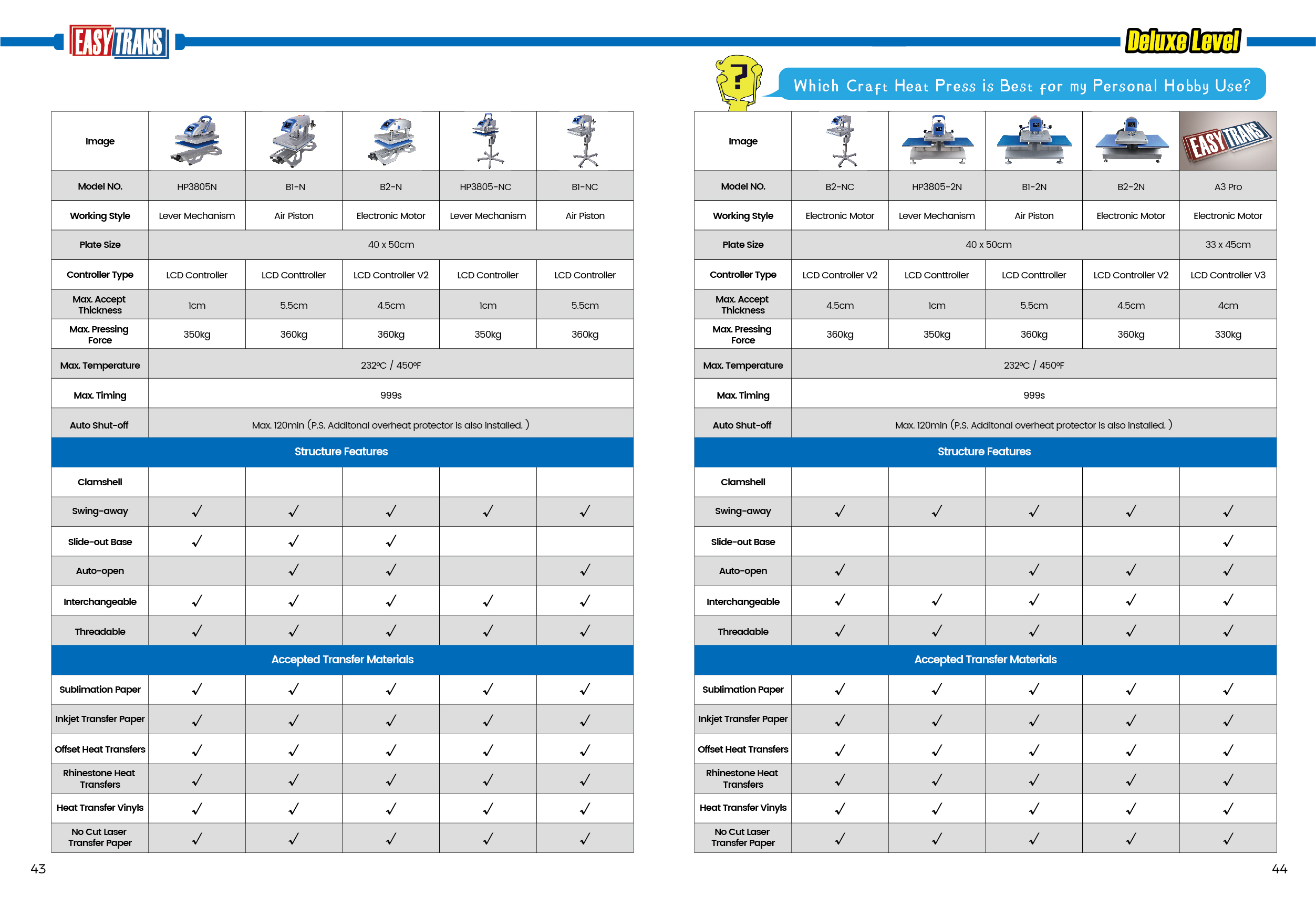

    P.S. Please click Download as PDF to save brochure and read more.

  • Style: Electric Heat Press
  • Features: Swing-away/Auto-open/Interchangeable/Threadable
  • Platen Size: 40 x 50cm
  • Dimension: 79x56x52cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Contact: WhatsApp/Wechat: 0086 - 150 6088 0319
  • Description

    Product Tags

    electric heat press

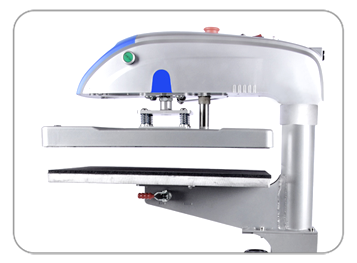

    EasyTrans Deluxe Level heat press featured with the swing-arm and just swing-away the heating plate and leave sufficient space for loading the items. Besides, it’s operated by featured lever mechanism locking system and generates Max.350kg, refers to easy applicable for any no cut laser transfer paper. Also, the feature mechanism is very easy to lift up the handle during the operation.

    Functioning as either a swinger heat press with stand, the 40 x 50cm EasyTrans Electric Pro Heat Press (SKU#: B2-NC) offers a heat-free workspace, touch screen settings, live digital time, temperature readouts. Plus, with lower platen thread-ability, you can position a garment once, rotate and decorate any area.

    Additional features

    heat press

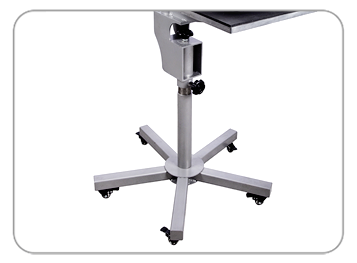

    Featured Heat Press Caddie

    This EasyTrans Deluxe heat press sits on a movable caddie directly, the fives legs style make sure heat press very stable and no worry for tripping over during the swing-away. The two hand-wheels on the caddie stand, one for Max. 10cm height adjustment, another one for left/ right rotation and fixed permanently.

    heat press

    Thread-able & Interchangeable Base

    This EasyTrans Press is installed with a featured base: 1. Quick changeable system enables you to change the different accessory platen in few seconds. 2. The thread-able base enables you to load or rotate the garment over the lower platen.

    heat press

    Advanced LCD Controller

    This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

    heat press

    Triple Thermal Production

    Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heatong plate with temperature protector which prevent abnormal temperature rise.

     heat press

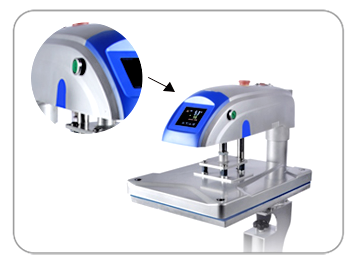

    Pop-out Controller

    A pop-up controller makes instrument replacement easier.

    heat press

    Protective Cap

    Protective Cap is safer and anti-scalding.

    heat press

    Four Support Springs

    Ensure balanced pressure ditribution.

    16x20 heat press

    16X20 Heat Platen

    There is enough size to print all kinds of products.

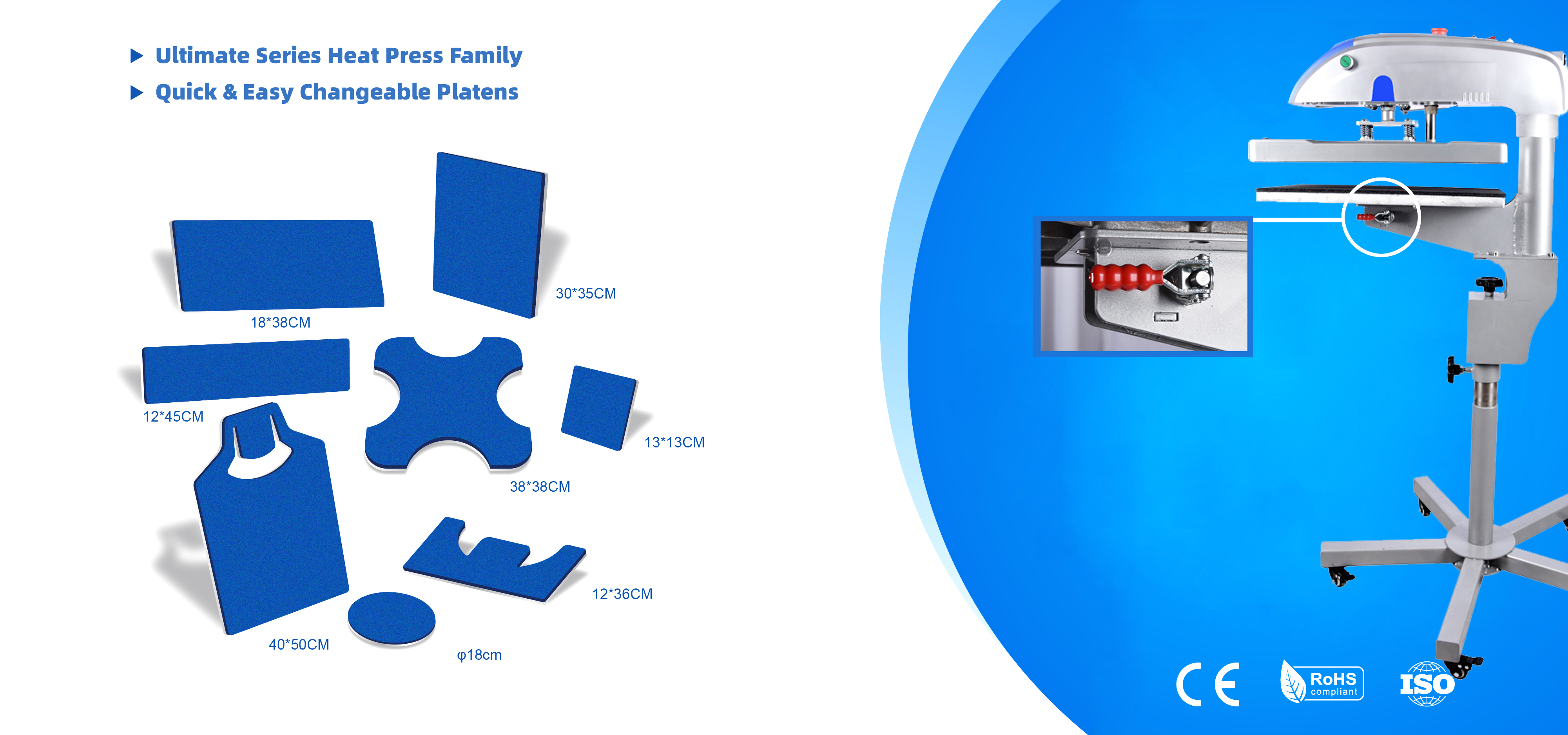

    Changeable Platen

    Changeable Platen

    For Label, Shoes, Stocking, Sleeves, Baby Clothes

    heat press

    User Safe Two-hand Operation

    electric heat press

    Accepts items up to 1.97" Thick

     heat press

    Maximum Swing Angle 145 Degree


    Heat Press Style: Electric
    Motion Available: Swing-away/ with stand
    Heat Platen Size: 40x50cm
    Voltage: 110V or 220V
    Power: 1800-2200W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: 79 x 56 x 52cm
    Machine Weight: 42kg+22.5kg
    Shipping Dimensions: 92 x 52.5 x 60cm
    Shipping Weight: 57kg+40kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
